The SM6F5.0A is a robust transient voltage suppression (TVS) diode from STMicroelectronics, designed to protect sensitive electronics against voltage spikes and surges. This product is a part of the Transil range, which is specifically engineered to provide high overvoltage protection by clamping action. Its stand-out feature is its ability to safely dissipate large amounts of transient energy, ensuring the protection of voltage-sensitive components such as integrated circuits in consumer electronics, computer systems, and industrial applications.

Key Features

• Peak Pulse Power: The SM6F5.0A can handle a peak pulse power of 600W (10/1000µs), which is essential for safeguarding against high-energy transients.
• Stand-off Voltage: It has a stand-off voltage rating of 5.0V, which makes it suitable for a range of low-voltage applications.
• Low Clamping Voltage: The diode offers a low clamping voltage, ensuring that the excess voltage during a surge is kept to a minimum, thus providing better protection for sensitive components.
• Fast Response Time: With a response time of less than 1 picosecond from 0V to BV min, it offers immediate protection from voltage spikes.
• Low Leakage Current: The low leakage current of the SM6F5.0A minimizes power loss when the device is in standby mode, making it energy efficient.

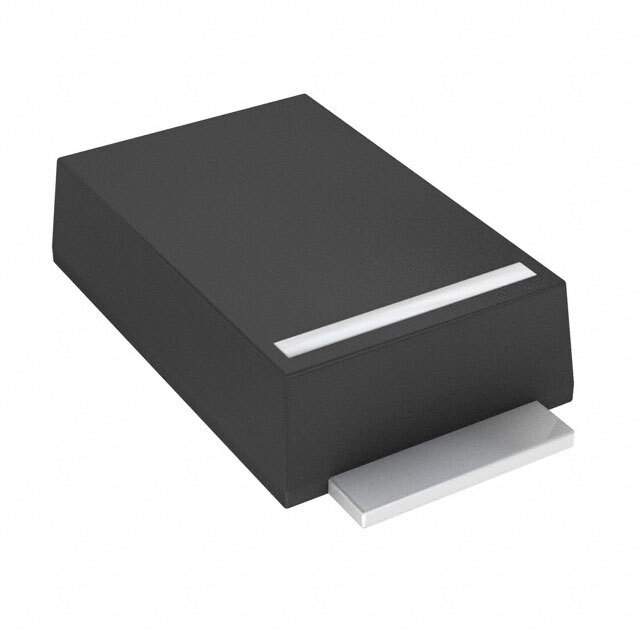

• Package: Available in a molded plastic SMB (DO-214AA) package, it is compact and suitable for automated assembly.
• Compliance: It is compliant with industrial standards such as RoHS and ISO 9001, ensuring quality and environmental safety.

Applications

The SM6F5.0A is versatile and can be used in a variety of applications, including:

• Protection of I/O Interfaces
• Computer Systems
• Telecommunication Equipment
• Power Supply Protection
• Consumer Electronics

With its combination of high power dissipation, low clamping voltage, and fast response time, the SM6F5.0A from STMicroelectronics is an excellent choice for designers looking to enhance the durability and reliability of their electronic products against transient voltage events.
