STMicroelectronics SM15T47CAY Transient Voltage Suppressor

The SM15T47CAY is a robust transient voltage suppressor (TVS) diode designed by STMicroelectronics to protect sensitive electronics from voltage spikes and transients induced by lightning and other transient voltage events. This component is part of STMicroelectronics' SM15T series, which is widely recognized for its reliability and performance in harsh environments.

Key Features

• Stand-off Voltage: The device has a stand-off voltage of 47V, which makes it suitable for a broad range of applications that require this level of voltage protection.
• Peak Pulse Power: It can handle a peak pulse power dissipation of 1500W (10/1000μs), ensuring protection against high energy transients.
• Clamping Voltage: With a clamping voltage of 77.4V, the SM15T47CAY provides an effective barrier against voltage spikes above its rated stand-off voltage.

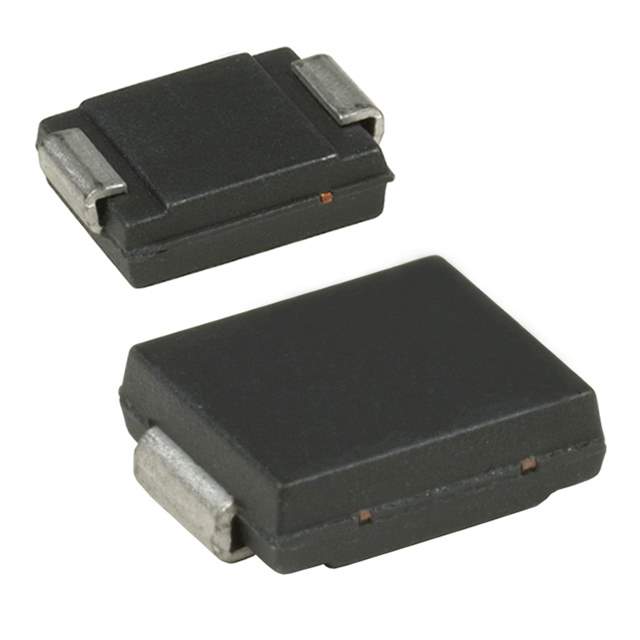

• Package: The device comes in a modified SMB package, known as SMB (DO-214AA), which is designed for surface-mount applications and is compatible with automated assembly processes.
• Temperature Range: The operating junction temperature range for this TVS diode is from -55°C to +150°C, allowing it to function reliably across a wide range of temperatures.

Applications

The SM15T47CAY is versatile and can be used in various applications, including:

• Power supply lines
• Automotive systems
• Industrial applications
• Telecommunication systems
• Consumer electronics

Quality and Reliability

STMicroelectronics ensures that the SM15T47CAY meets the highest quality and reliability standards. The device is compliant with industry specifications, including IEC 61000-4-2 and IEC 61000-4-5, which govern electrostatic discharge (ESD) and surge immunity, respectively. Additionally, it is RoHS compliant and supports lead-free soldering, reflecting STMicroelectronics' commitment to environmental sustainability.

In conclusion, the SM15T47CAY from STMicroelectronics is a high-performance TVS diode that offers excellent transient voltage protection for electronic circuits. Its robust design and compatibility with high-volume manufacturing make it a preferred choice for engineers and designers looking to enhance the durability and reliability of their electronic products.
