The M48Z02-70PC1 is a 16 Kbit (2Kb x 8) ZEROPOWER® SRAM with a 70ns access time. This high-performance product, designed by STMicroelectronics, is a non-volatile static RAM which integrates a fully functional battery-backed memory and a real-time clock (RTC) in a single package. The integration of power-fail deselect circuitry and battery control logic on the chip enhances the reliability and longevity of the memory storage.

Key Features

• Memory Storage: 16 Kbit (2Kb x 8) of static RAM with non-volatile, battery-backed data retention.
• Access Time: Fast access time of 70ns, allowing for efficient data retrieval.
• Power Source: Integrated, replaceable, long-life lithium battery maintains data and real-time clock operation for over 10 years in the absence of power.
• Real-Time Clock: An embedded RTC provides timekeeping with precision in seconds, minutes, hours, day, date, month, and year formats.
• Automatic Power-Fail Chip Deselect: Ensures data retention by automatically switching to the battery supply during power failures.
• Low Power Consumption: ZEROPOWER® technology significantly reduces power consumption, making it ideal for energy-sensitive applications.

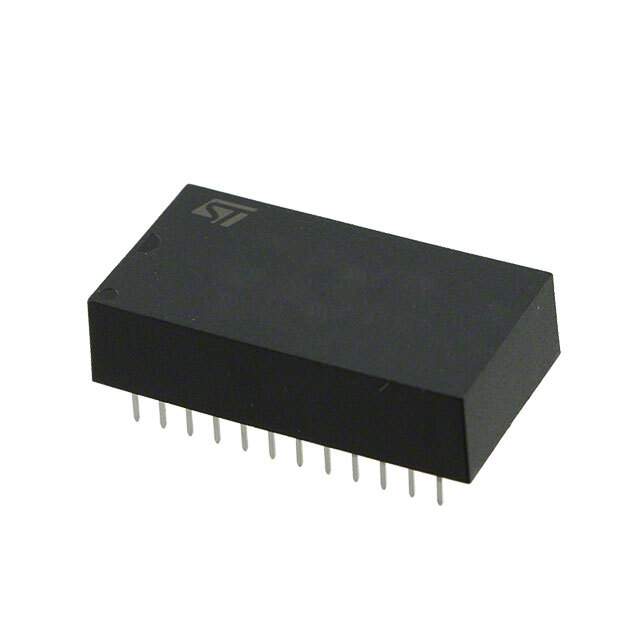

• Packaging: Housed in a 24-pin, 600 mil DIP CAPHAT™ package, suitable for standard PCB layouts.
• Compatibility: Directly replaces standard 2K x 8 volatile static RAM or EEPROM, offering non-volatile data retention without battery concerns.

Applications

The M48Z02-70PC1 is designed for applications that require reliable and long-term data storage with a real-time clock, such as:

• Industrial control systems
• Utility meters
• Security systems
• Medical devices
• Data collection devices

With its robust design and integrated features, the M48Z02-70PC1 from STMicroelectronics offers a compact, reliable solution for data and timekeeping needs in a variety of electronic systems.
