STMicroelectronics M24C16-RMB6TG EEPROM

The M24C16-RMB6TG is a 16-Kbit serial EEPROM (Electrically Erasable Programmable Read-Only Memory) from STMicroelectronics, designed for flexible, non-volatile storage solutions in a wide range of electronic applications. This EEPROM device utilizes the I²C (Inter-Integrated Circuit) communication protocol, making it an ideal choice for applications requiring efficient data storage and retrieval with a minimal pin count.

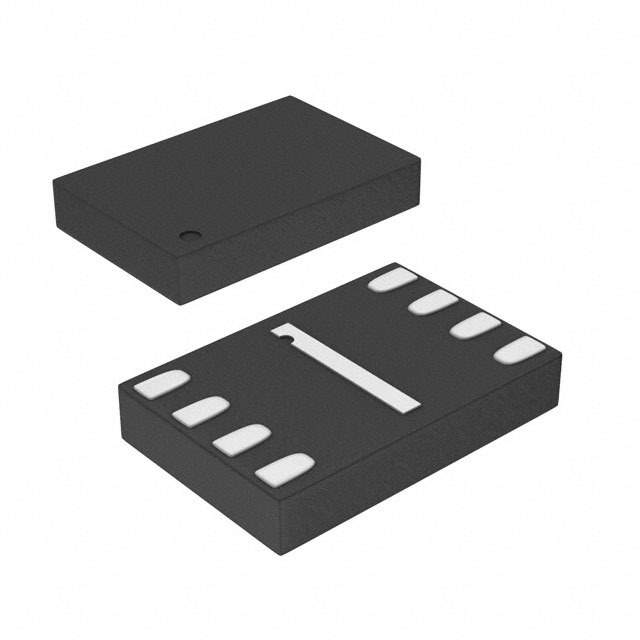

With its small 8-SO package, the M24C16-RMB6TG is optimized for space-conscious designs, offering a compact footprint for printed circuit boards. It operates across a voltage range of 2.5V to 5.5V, providing versatility for different system power requirements and ensuring compatibility with both low-power and standard operations.

One of the key features of this EEPROM is its write cycle endurance, which guarantees reliable data retention for an extended period. The M24C16-RMB6TG is rated for a minimum of 1 million write cycles, with a data retention period of up to 40 years, ensuring that critical data remains secure and uncorrupted over the lifespan of the device.

The device supports a bidirectional 2-wire bus and a clock frequency of up to 400 kHz (fast mode), allowing for quick and efficient data transfer. It also includes a write control input, which provides additional hardware protection during the write operation. This feature is particularly useful in preventing inadvertent writes that could occur during power-up or power-down sequences.

For security and device addressing, the M24C16-RMB6TG incorporates three chip enable pins, making it possible to connect up to eight devices on the same bus for expanded storage capacity without any address conflict. This scalability feature is particularly beneficial for complex systems that require multiple memory components.

In summary, the M24C16-RMB6TG from STMicroelectronics is a robust and reliable EEPROM solution that offers high endurance, low power consumption, and the convenience of a serial I²C interface. Its small package, coupled with its ability to work under a wide voltage range and its enhanced protection features, make it a suitable choice for a multitude of applications, including consumer electronics, industrial control systems, and healthcare devices.
