STMicroelectronics M24C16-FMH6TG EEPROM

The M24C16-FMH6TG from STMicroelectronics is a high-performance 16-Kbit serial EEPROM, designed to provide robust storage solutions for a wide array of electronic applications. This EEPROM (Electrically Erasable Programmable Read-Only Memory) device utilizes the standard I2C-bus interface, which ensures compatibility with a vast range of microcontrollers and processors that support this popular communication protocol.

With a memory size of 16 Kbits, the M24C16-FMH6TG is organized as 2,048 x 8 bits, which allows for efficient data management and storage of configuration settings, calibration data, or any small data sets that require frequent updating. The device operates across a voltage range of 2.5V to 5.5V, making it versatile for both low and standard voltage applications. This flexibility in power supply requirements is critical for designers who aim to create energy-efficient products or need to comply with various power supply standards.

One of the key features of the M24C16-FMH6TG is its write cycle time of 5 ms (typical), which allows for rapid data storage and updates. Moreover, the EEPROM is designed to guarantee an endurance of at least one million write cycles and a data retention period of 40 years, ensuring the reliability and longevity of the data stored within the device.

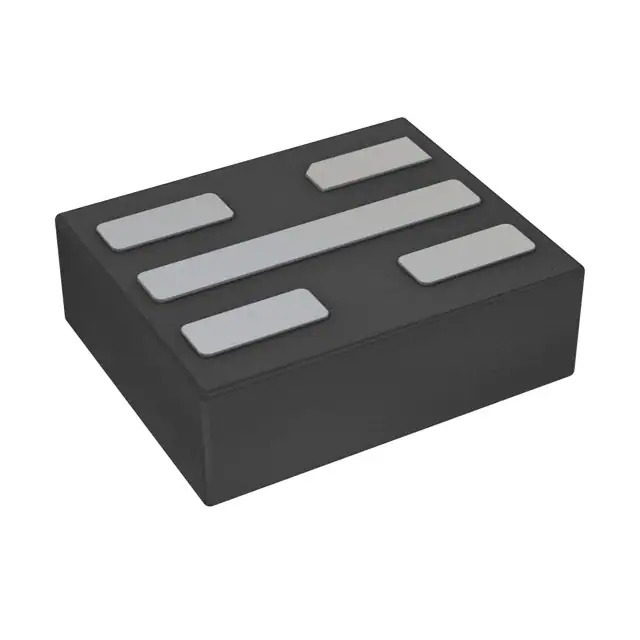

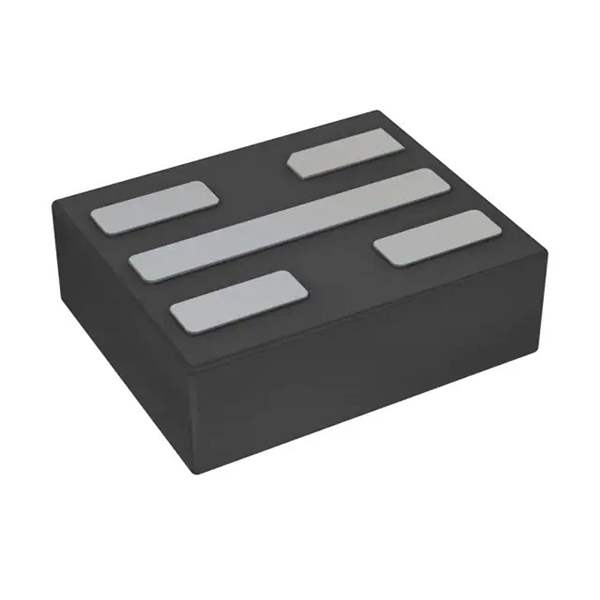

The M24C16-FMH6TG comes in a compact 8-lead MiniMap (MLP8) package, which is not only space-saving but also suitable for automated assembly processes, thereby simplifying the manufacturing and integration of the EEPROM into various electronic systems. The device also includes write control features such as byte and page write (up to 16 bytes), which provide additional flexibility and control over data management.

STMicroelectronics has equipped this EEPROM with a bidirectional data transfer protocol, enhancing the ease of use and efficiency of data communication. Additionally, the device supports a partial array protection feature, allowing users to lock specific blocks of memory to prevent accidental overwrites or modifications.

In summary, the M24C16-FMH6TG EEPROM from STMicroelectronics is a highly reliable and versatile memory solution that caters to the needs of modern electronic designs requiring stable and enduring data storage capabilities.
