STMicroelectronics M24C16-DRMF3TG/K EEPROM

The M24C16-DRMF3TG/K is a 16-Kbit serial EEPROM from STMicroelectronics, designed for optimal data storage solutions. It utilizes the I²C interface, ensuring easy integration into a vast array of electronic systems. This EEPROM is part of the M24C series, which is renowned for its reliability and performance in storing non-volatile data.

Key Features

• Memory Size: 16 Kbits, organized as 2,048 x 8 bits, which allows for sufficient storage for calibration data, device configuration, and small application parameters.
• Communication Interface: It features a two-wire I²C serial interface that supports 400 kHz protocol, enabling quick and efficient data transfer while maintaining simplicity in connectivity.
• Write Cycle Time: With a typical write cycle time of 5 ms, it facilitates rapid updates to stored information, making it suitable for dynamic application settings.
• Operating Voltage Range: The device operates across a wide voltage range of 2.5 V to 5.5 V, compatible with various logic levels and ensuring versatility in different circuit designs.
• Temperature Range: It is designed to operate over an extended temperature range from -40°C to +85°C, making it reliable in various environmental conditions.

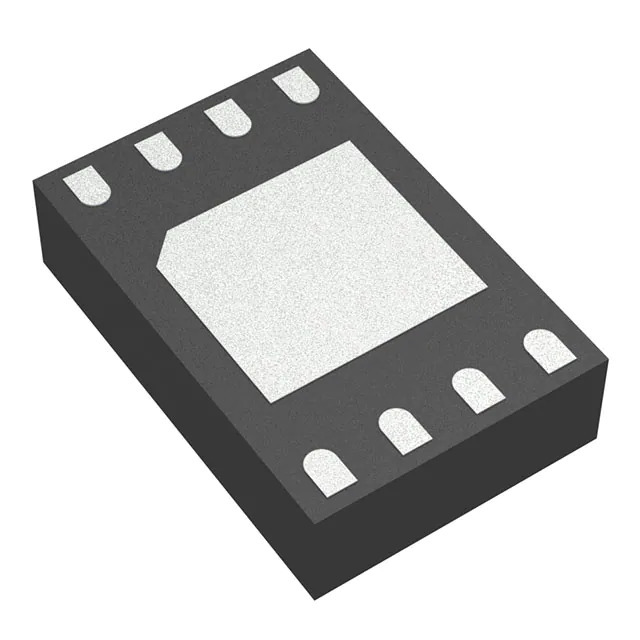

• Package: The EEPROM comes in a compact 8-pin UFDFPN package, which is space-saving and suitable for PCBs where space is at a premium.
• Endurance: It has a high data retention capability, with a memory endurance of 1 million write cycles and a data retention period of 40 years.

Applications

The M24C16-DRMF3TG/K EEPROM is ideal for a wide range of applications, including:

• Industrial and medical equipment
• Consumer electronics
• Automotive systems
• Personal devices
• Smart meters

Conclusion

STMicroelectronics' M24C16-DRMF3TG/K is a robust and versatile EEPROM solution that offers reliable storage for applications requiring data persistence with a small footprint. Its combination of high endurance, wide operating range, and I²C interface makes it an excellent choice for designers looking to integrate non-volatile memory into their systems.
