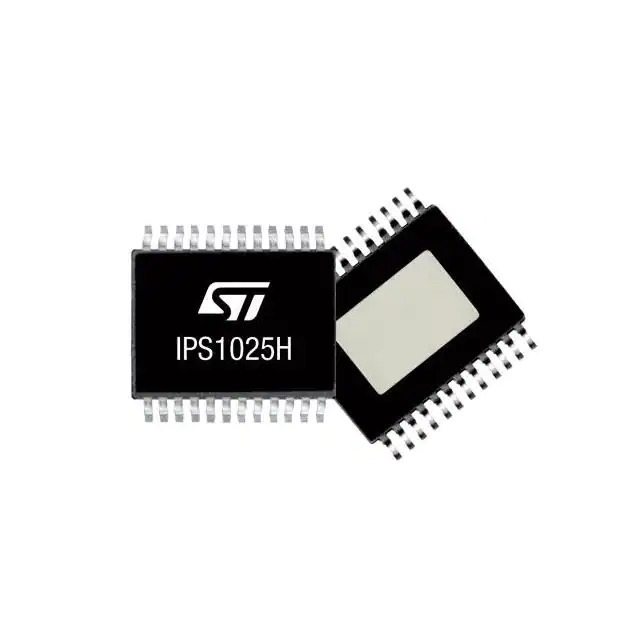

The IPS1025HTR from STMicroelectronics is a cutting-edge Intelligent Power Switch (IPS) designed for a wide range of applications. This robust component is part of the IPS family and is particularly suited for driving resistive, inductive, and capacitive loads. Its primary use is in the automotive industry, where reliability and efficiency are of paramount importance, but it is also versatile enough for industrial applications.

Key Features

• High Voltage Capability: The IPS1025HTR operates at a clamping voltage of 42V, providing a buffer against voltage spikes and surges commonly found in automotive environments.
• Current Rating: This device is capable of handling continuous current up to 8A, making it suitable for a range of high-power applications.
• Low On-Resistance: With an on-resistance of only 80mΩ (max), the IPS1025HTR ensures efficient power handling, minimizing losses and heat generation.
• Protection Features: It includes over-temperature protection, over-current protection, and active clamp features to safeguard the device and the load in adverse conditions.
• Diagnostic Functions: The switch provides feedback that can be used for diagnostic purposes, helping to prevent failures and extend the lifetime of the system.
• Logic Level Input: Compatible with 5V logic levels, this switch can be easily interfaced with microcontrollers and other logic devices.

Applications

The IPS1025HTR is ideal for a variety of applications, including but not limited to:

• Automotive applications such as lights, fans, and heaters
• Industrial automation systems
• Smart power distribution systems
• Solenoid and valve control circuits

Package and Availability

The IPS1025HTR is available in a SO-8 package, which is widely used and recognized for its compact footprint and reliability. STMicroelectronics ensures the availability of this product in Tape and Reel (TR) for automated assembly processes, reflecting its commitment to serving the needs of mass-production environments.

With its robust design and comprehensive feature set, the IPS1025HTR from STMicroelectronics represents a reliable and efficient solution for power switching requirements in demanding applications.
