Win Source Part Number Cross
Manufacturer STMicroelectronics
Category Development Boards, Kits, Programmers Evaluation Boards DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Packaging  Bulk
Main Purpose AC/DC, Primary Side
Outputs and Type 1, Isolated
Power - Output 35 W
Voltage - Output 48V
Current - Output 730mA
Voltage - Input 90 ~ 265 VAC
Regulator Topology Flyback
Win Source Part Number WS1303995-EVAL-PSR01B-35W
Ultra Librarian 3D Model Ultra Librarian EVAL-PSR01B-35W CAD Model

Description

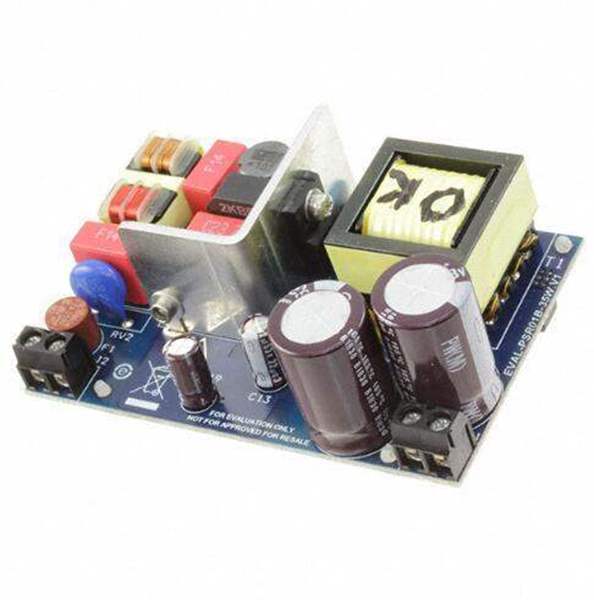

HVLED001B, STF10LN80K5 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
