STMicroelectronics, a global semiconductor leader, presents the ESDZV5H-1BU2, a state-of-the-art ESD protection device designed to safeguard high-speed data lines from transient voltage spikes that can cause irreversible damage to sensitive electronic components. This product is a vital component in protecting modern electronics from the detrimental effects of electrostatic discharge (ESD).

Key Features

• Ultra-High Speed Data Line Protection: The ESDZV5H-1BU2 is optimized for high-speed differential data lines, ensuring that signals such as USB 2.0, HDMI, and LVDS are protected without compromising data integrity.
• Low Capacitance: With an extremely low line capacitance, this device is ideal for preserving signal integrity in high-speed applications, minimizing signal attenuation and ensuring reliable data transmission.
• Transient Voltage Suppression: The device offers excellent transient voltage suppression performance, clamping ESD strikes to safe levels, thus protecting downstream components from voltage-induced damage.

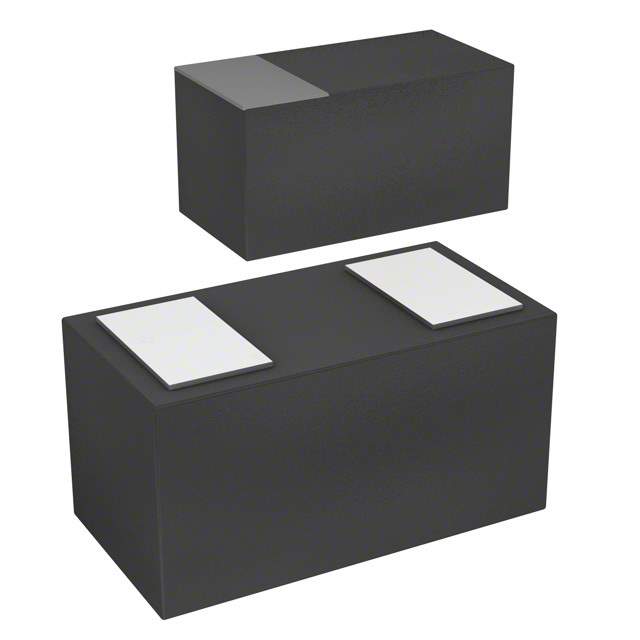

• Small Package Size: The ESDZV5H-1BU2 comes in a compact SOD-882 package, making it suitable for space-constrained applications without compromising on performance.
• High Reliability: Manufactured by STMicroelectronics, the ESDZV5H-1BU2 is built to meet high reliability standards, ensuring long-term performance and stability.

Applications

The ESDZV5H-1BU2 is versatile and can be used in a variety of applications where data line protection is crucial. Some common applications include:

• Mobile Devices
• Computers and Peripherals
• Consumer Electronics
• Networking Equipment
• Portable Medical Devices

Technical Specifications

The ESDZV5H-1BU2 provides robust protection with the following technical specifications:

• Breakdown Voltage: 5.8 V (typical)
• Clamping Voltage: 17 V (typical at Ipp = 1 A)
• ESD Discharge Protection: up to 15 kV (air discharge)
• Package: SOD-882

With its combination of high-speed data line protection, low capacitance, and compact form factor, the ESDZV5H-1BU2 from STMicroelectronics is an essential component for any design where ESD protection is a critical concern. This device ensures that your electronics are shielded from the unpredictable nature of ESD, maintaining both functionality and longevity.
