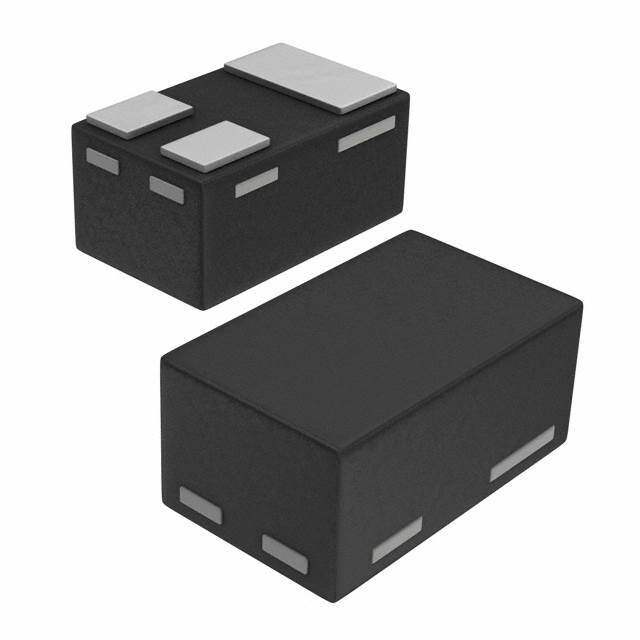

ESDALC6V1M3 Transient Voltage Suppressor from STMicroelectronics

The ESDALC6V1M3 is a state-of-the-art transient voltage suppressor (TVS) designed by STMicroelectronics, specifically engineered to protect sensitive electronic equipment from electrostatic discharge (ESD) and other voltage-induced transients. This device is a crucial component for any design where electronic circuitry could be exposed to sudden spikes in voltage, such as in communication systems, computers, and consumer electronics.

Constructed using advanced low-capacitance rail-to-rail diodes, the ESDALC6V1M3 offers exceptional ESD protection for high-speed data lines. Its low clamping voltage ensures that any transient voltage spikes are quickly suppressed, protecting the delicate circuits it is connected to. The device is capable of withstanding ESD discharges up to 15 kV (air and contact discharge) as per the IEC 61000-4-2 standard, which is a testament to its robustness and reliability.

One of the key features of the ESDALC6V1M3 is its small package design. Housed in a tiny SOT-23-3 package, it occupies minimal board space, making it an ideal solution for space-constrained applications. Despite its small size, it does not compromise on performance and is suitable for protecting two I/O lines or one line pair.

The ESDALC6V1M3 has a low leakage current and a breakdown voltage of 6V, which allows for precise operation. It's also characterized by a very low capacitance, typically around 12 pF, which is essential for maintaining signal integrity in high-speed communication lines. This feature ensures that the device can be used in applications where maintaining data integrity is critical, such as USB 2.0, HDMI, Ethernet, and other high-speed digital interfaces.

For designers and engineers looking for a reliable and high-performance ESD protection solution, the ESDALC6V1M3 by STMicroelectronics offers a perfect blend of compact design, robust protection, and high-speed operation. It ensures that sensitive components remain safe from the unpredictable nature of transient events, thus enhancing the durability and longevity of the end product.
