Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 5
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6.1V
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-μQFN (1.45x1.0)
Win Source Part Number 015727-ESDALC6V1-5M6
Popularity Medium
Supply and Demand Status Balance

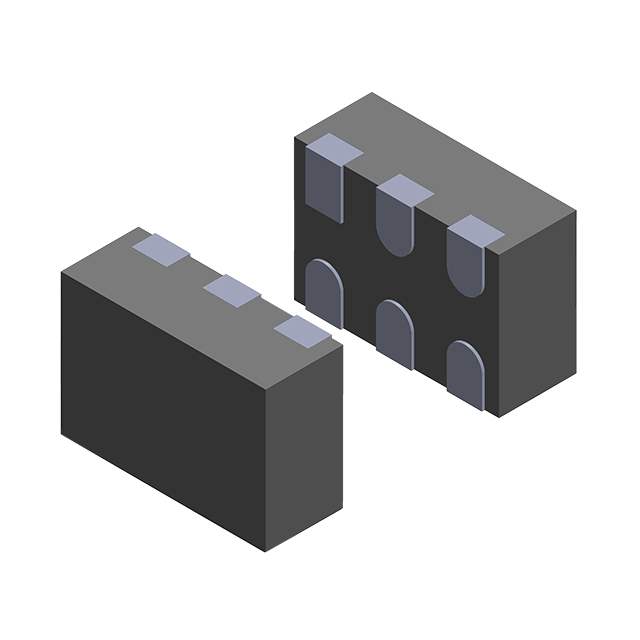

Ultra Librarian 3D Model Ultra Librarian ESDALC6V1-5M6 CAD Model

Description

ESDALC6V1-5M6 Transient Voltage Suppressor from STMicroelectronics

The ESDALC6V1-5M6 is a state-of-the-art Transient Voltage Suppressor (TVS) designed by STMicroelectronics, a leader in semiconductor solutions. This robust device is engineered to protect sensitive electronic equipment from electrostatic discharges (ESD) and other voltage-induced transients. With its compact SOT-23-6L package, the ESDALC6V1-5M6 is ideal for space-constrained applications where efficient ESD protection is essential.

Key Features:

  • ESD Protection: The ESDALC6V1-5M6 offers exceptional ESD protection, meeting IEC 61000-4-2 level 4 standards. It can withstand electrostatic discharges up to 15 kV (air discharge) and 8 kV (contact discharge), safeguarding your devices from common ESD events.
  • Low Clamping Voltage: With a low clamping voltage, this TVS ensures that the protected device is exposed to minimal stress during transient conditions, thereby enhancing the longevity and reliability of the application.
  • Low Leakage Current: The low leakage current feature minimizes power consumption when the device is in standby mode, making it suitable for battery-powered applications.
  • Multi-Line Protection: The ESDALC6V1-5M6 is capable of protecting up to five data lines simultaneously, providing comprehensive defense against transients for multiple pathways within a circuit.
  • Fast Response Time: The device's fast response time ensures quick activation upon detecting a transient event, offering immediate protection to the downstream electronics.

Applications:

The versatility of the ESDALC6V1-5M6 allows it to be used in a wide range of applications, including:

  • Mobile Phones and Accessories
  • Computers and Peripherals
  • Audio/Video Inputs
  • Serial and Parallel Ports
  • USB 2.0 and 3.0 Power and Data Lines

STMicroelectronics' commitment to quality ensures that the ESDALC6V1-5M6 is manufactured to the highest standards, with robustness and performance in mind. Whether you're designing consumer electronics, communication devices, or any other application that requires reliable ESD protection, the ESDALC6V1-5M6 is an excellent choice to secure your designs against transient voltage events.
