ESDALC6-4N4 STMicroelectronics – Price, Stock & Datasheet

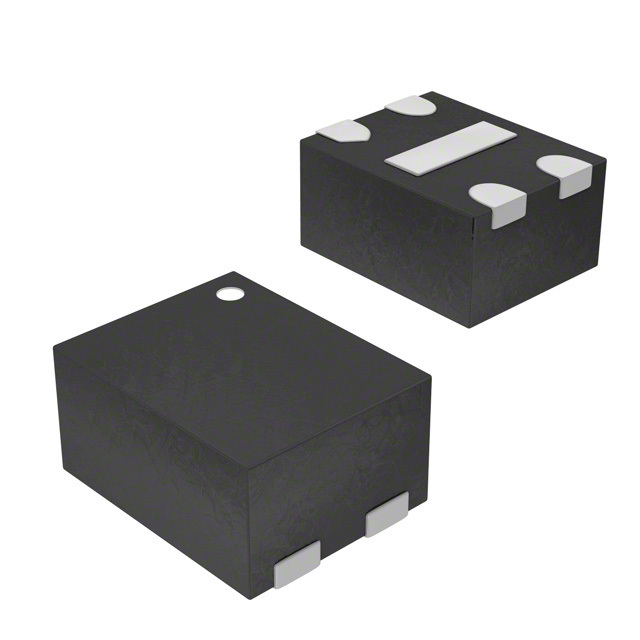

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 10V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 27W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 9.5pF @ 1MHz
Mounting Type Surface Mount
Case / Package 4-XFDFN Exposed Pad
Supplier Device Package 4-uQFN (1x0.8)
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1601931-ESDALC6-4N4
Ultra Librarian 3D Model Ultra Librarian ESDALC6-4N4 CAD Model
