The ESDA6V1M6 is a state-of-the-art Transil™ ESD protection device from STMicroelectronics, designed to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) threats. This compact and robust component is a crucial addition for modern electronics where reliability and miniaturization are key.

Key Features

• High ESD Protection: With its capability to withstand ESD up to 15 kV (air discharge) and 8 kV (contact discharge), the ESDA6V1M6 ensures compliance with the IEC 61000-4-2 standard, providing robust protection for sensitive components.
• Low Capacitance: The device features a very low capacitance of typically 5 pF, which is ideal for preserving signal integrity in high-speed communication interfaces such as USB 2.0, HDMI, and Gigabit Ethernet.
• Low Leakage Current: It has an ultra-low leakage current which is beneficial for power-sensitive applications, ensuring minimal impact on the overall power consumption of the system.

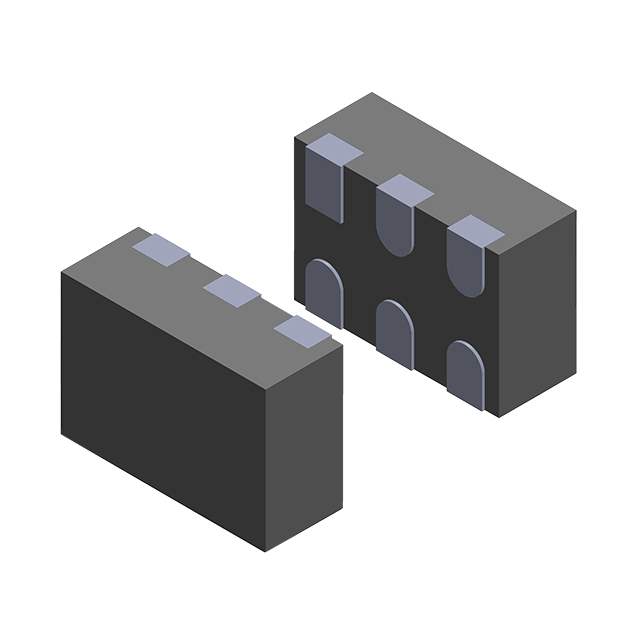

• Small Package: The ESDA6V1M6 comes in a tiny SOT-23-6L package, making it an excellent choice for space-constrained applications, without compromising on performance.
• High Integration: This device integrates six unidirectional Transil diodes, offering protection for up to five data lines and a power line in a single package, simplifying design and reducing PCB space requirements.

Applications

The ESDA6V1M6 is suitable for a wide range of applications, including:

• Computer interfaces such as USB, HDMI, and Ethernet
• Consumer electronics like smartphones, tablets, and digital cameras
• Telecommunication systems
• Portable devices and IoT applications

Conclusion

STMicroelectronics' ESDA6V1M6 is a versatile and powerful solution for ESD protection. Its combination of high ESD protection level, low capacitance, and small form factor makes it an excellent choice for designers looking to enhance the durability and reliability of their high-speed data interfaces. The integration of multiple protection diodes in a single package also offers a significant advantage in terms of PCB layout and system design simplicity.
