EMIF08-LCD04M16 from STMicroelectronics

The EMIF08-LCD04M16 is a highly integrated solution designed by STMicroelectronics, tailored for the protection and filtering of electrostatic discharge (ESD) sensitive lines. This device is particularly well-suited for liquid crystal display (LCD) interfaces, where signal integrity and protection against transients are crucial for the performance and longevity of the product.

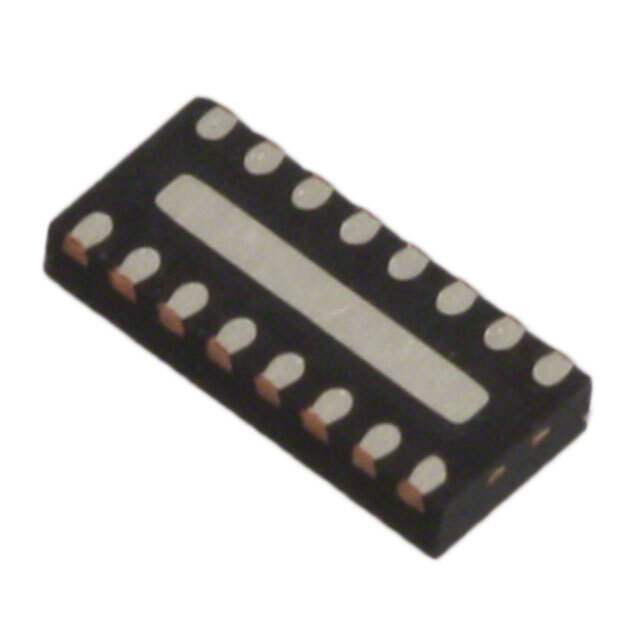

The EMIF08-LCD04M16 is an 8-line filter incorporating 16 ESD protection devices. It is housed in a compact μQFN-20L package, making it an ideal choice for space-constrained applications. The device is designed to suppress ESD events up to the IEC61000-4-2 level 4 standard, providing robust protection for sensitive components downstream.

One of the standout features of the EMIF08-LCD04M16 is its low line capacitance, which ensures high-speed data integrity for the LCD interface. This is particularly important for maintaining the sharpness and clarity of the display, as well as preventing any distortion or data loss that could occur due to unwanted signal attenuation.

The device also boasts a very low PCB space consumption, thanks to its μQFN package. This not only simplifies the design process but also allows for more efficient use of board space, which is a critical factor in the design of modern electronic devices. The EMIF08-LCD04M16 is designed for a wide range of applications, including mobile phones, personal digital assistants (PDAs), and other portable devices where the display is a key interface with the user.

Furthermore, the EMIF08-LCD04M16 is characterized by a very low leakage current, contributing to the overall energy efficiency of the end application. This feature is particularly important for battery-powered devices, where power conservation is essential for maximizing battery life.

In summary, the EMIF08-LCD04M16 from STMicroelectronics is a versatile, high-performance solution that provides ESD protection and signal filtering for LCD interfaces. Its compact size, high ESD protection level, and low power consumption make it an excellent choice for designers looking to enhance the durability and performance of their products.
