EMIF06-VID01F2 - EMI Filter and Line Termination for Video Interface

The EMIF06-VID01F2 is a cutting-edge EMI filtering and line termination solution designed by STMicroelectronics, tailored specifically for the protection of high-speed video interfaces. This compact component integrates six filters to suppress EMI/RFI noise in electronic circuits, and it includes line termination functions to ensure signal integrity, making it an ideal choice for applications involving video signal transmission.

With its ability to support a wide range of video standards, including VGA, SVGA, XGA, and SXGA, the EMIF06-VID01F2 is highly versatile and can be incorporated into various devices such as desktop monitors, projectors, and high-definition televisions. Its design is optimized to provide high-level ESD protection, safeguarding sensitive video interface lines against electrostatic discharges that can occur during normal operation or during handling and assembly.

The EMIF06-VID01F2 features an array of benefits:

• High Integration: By combining EMI filtering and line termination in a single package, the EMIF06-VID01F2 saves valuable PCB space and reduces component count, leading to a more streamlined design and manufacturing process.
• Enhanced Signal Quality: The integrated line termination helps to maintain signal integrity by matching impedance and minimizing reflection, thus ensuring a clear and stable video signal.
• Superior ESD Protection: This product provides robust protection against ESD, withstanding contact discharges of up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard.
• Low Capacitance: The device's low line capacitance allows for high-speed signal transmission without significant signal attenuation, making it suitable for high-resolution video interfaces.

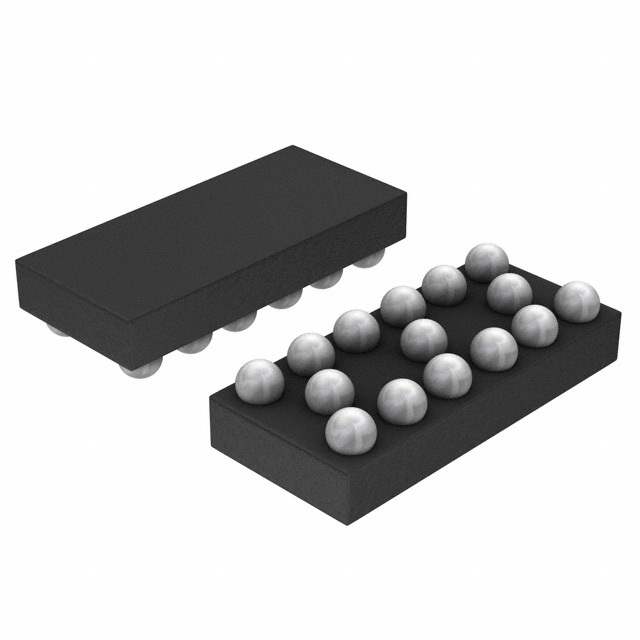

Manufactured in a compact flip-chip package, the EMIF06-VID01F2 is designed for surface-mount technology (SMT), allowing for efficient assembly and soldering processes. Its small footprint and low profile make it an excellent choice for sleek, modern electronic designs where space is at a premium.

STMicroelectronics' commitment to quality and performance is evident in the EMIF06-VID01F2, making it a reliable and essential component for any video interface application that demands high-speed data transmission and protection against electromagnetic interference.
