EMIF03-SIM03F3: EMI Filter and Line Termination for SIM Card Interfaces

The EMIF03-SIM03F3 is a highly integrated device designed by STMicroelectronics to provide Electromagnetic Interference (EMI) filtering and line termination specifically for the SIM card interfaces found in mobile phones and other portable communication devices. This compact component is engineered to ensure signal integrity, reduce noise, and maintain the performance of the SIM card interface, which is critical for the reliable operation of mobile devices.

Key Features

• EMI Filtering: The device includes a set of high-quality EMI filters that significantly reduce the noise on data lines, thereby improving the overall electromagnetic compatibility (EMC) of the device.
• Integrated Line Termination: It provides the necessary line termination for the SIM card interface, which helps in maintaining signal integrity and prevents reflection that can cause communication errors.
• Low Pass Filter: The low pass filter topology is designed to attenuate unwanted high-frequency signals, ensuring that only the necessary signals reach the SIM card.
• ESD Protection: The EMIF03-SIM03F3 is equipped with robust Electrostatic Discharge (ESD) protection circuits to safeguard the SIM card interface from static damage, which is essential for the longevity of the device.

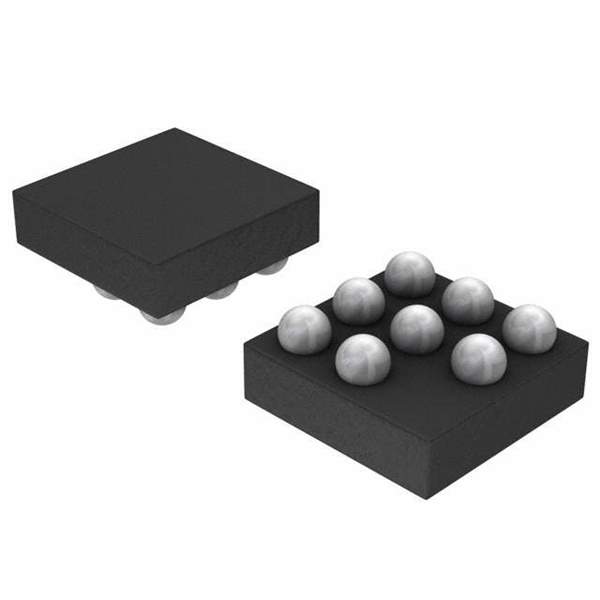

• Compact Package: The device comes in a compact flip-chip package, which saves valuable board space and is ideal for space-constrained applications.

Applications

The EMIF03-SIM03F3 is suitable for a variety of applications where SIM card interface protection and signal integrity are paramount. This includes:

• Mobile phones and smartphones
• Tablets and portable computing devices
• GPS and navigation systems
• Wireless communication modules
• IoT devices with cellular connectivity

Conclusion

The EMIF03-SIM03F3 from STMicroelectronics is an essential component for designers looking to enhance the performance and reliability of SIM card interfaces. With its integrated EMI filtering, line termination, and ESD protection features, this device ensures that mobile and portable devices operate smoothly and are well-protected against common electromagnetic and static disturbances.
