The ECMF06-6HSM16 is an advanced EMI filtering and line termination device designed by STMicroelectronics, one of the leading players in the semiconductor industry. This compact component is specifically engineered to suppress EMI/RFI noise in electronic systems, ensuring compliance with regulatory standards and improving system reliability. It is suitable for high-speed data lines such as USB 2.0, HDMI, MIPI, and other differential serial buses.

Key Features

• Integrated ESD Protection: The ECMF06-6HSM16 provides robust electrostatic discharge (ESD) protection for sensitive circuitry, meeting IEC 61000-4-2 Level 4 requirements. This feature helps to prevent damage caused by static electricity and enhances the durability of end products.
• High-Speed Data Line Filtering: With its ability to filter undesired high-frequency noise, the device ensures signal integrity on high-speed interfaces without compromising data rates, making it an ideal solution for maintaining signal quality in fast communication protocols.
• Low Capacitance: The device features very low line capacitance, which minimizes signal attenuation and preserves the integrity of high-speed signals.

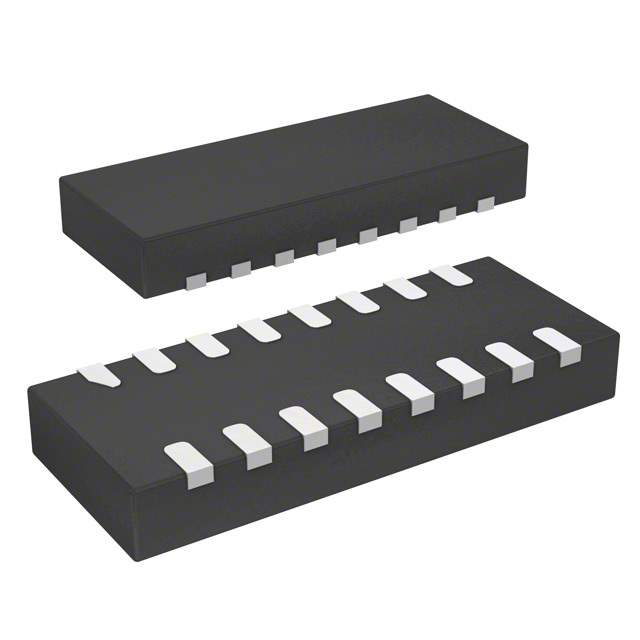

• Small Form Factor: The ECMF06-6HSM16 comes in a compact μQFN-16 package, making it suitable for space-constrained applications while providing high performance in EMI filtering and line termination.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, the product is lead-free and fully compliant with the Restriction of Hazardous Substances (RoHS) directive, making it a responsible choice for eco-friendly electronics manufacturing.

Applications

The ECMF06-6HSM16 is versatile and can be used in a wide range of applications where high-speed data integrity and EMI compliance are critical. It is particularly well-suited for:

• Smartphones, Tablets, and Portable Electronics
• Computers and Peripherals
• Consumer Electronics (e.g., Set-Top Boxes, Smart TVs)
• High-Speed Data Interfaces in Automotive Applications

With its exceptional performance and compact size, the ECMF06-6HSM16 from STMicroelectronics is a crucial component for designers looking to enhance their products with superior EMI filtering capabilities and robust ESD protection.
