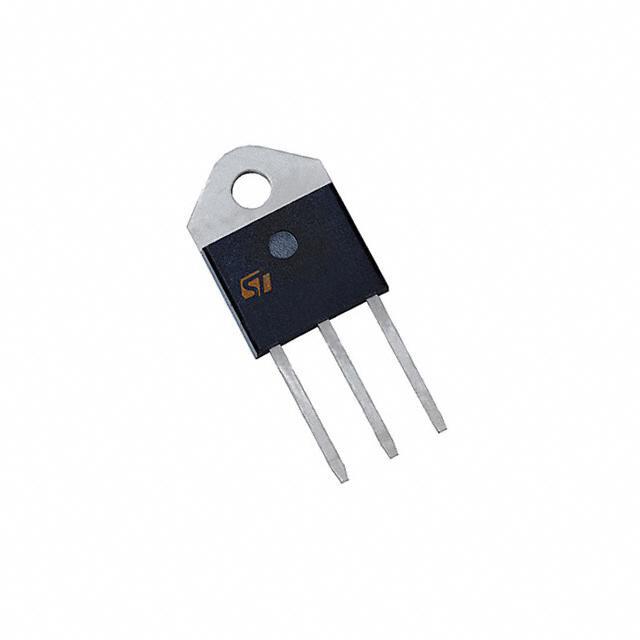

STMicroelectronics BYV52PI-200RG Product Overview

The BYV52PI-200RG from STMicroelectronics is a high-performance, dual diode module designed to meet the needs of a wide range of power conversion and rectification applications. This robust component is engineered to provide efficient and reliable operation in environments where high voltage and current handling are essential.

Key Features:

• Voltage Rating: The device is rated for a repetitive peak reverse voltage (VRRM) of 200V, making it suitable for operations in circuits with high voltage requirements.
• Current Capacity: It offers a high average forward current of up to 30A, ensuring it can handle significant power levels in various applications.
• Low Forward Voltage Drop: The low forward voltage drop of the diodes ensures higher efficiency, which is critical for minimizing energy losses in power conversion systems.
• Isolation Voltage: With an isolation voltage of 2500V, the module provides excellent electrical isolation between the diodes and the mounting base, enhancing safety and reliability.
• Package: The BYV52PI-200RG is housed in an industry-standard package, making it compatible with a wide range of existing designs and easy to integrate into new projects.

Applications:

This dual diode module is particularly well-suited for use in:

• Switch-mode power supplies (SMPS)
• Power inverters and converters
• Freewheeling diodes in motor control circuits
• Battery chargers
• Energy storage systems

Reliability and Quality:

STMicroelectronics is known for their commitment to quality and reliability. The BYV52PI-200RG is manufactured with stringent quality control processes and is designed to meet the high reliability requirements of industrial applications. With its superior electrical characteristics and robust package design, this dual diode module is an excellent choice for designers looking to enhance the performance and longevity of their power electronic systems.
