Product Overview: BTA41-700B - STMicroelectronics

The BTA41-700B is a high-power, high-voltage triac manufactured by STMicroelectronics, a global leader in semiconductor solutions. Designed to handle up to 40A RMS with repetitive peak off-state voltage capabilities of 700V, this robust triac is ideally suited for AC switching applications where high surge capability is a necessity. It is commonly used in applications such as motor control, industrial and domestic lighting, heating, and static switching.

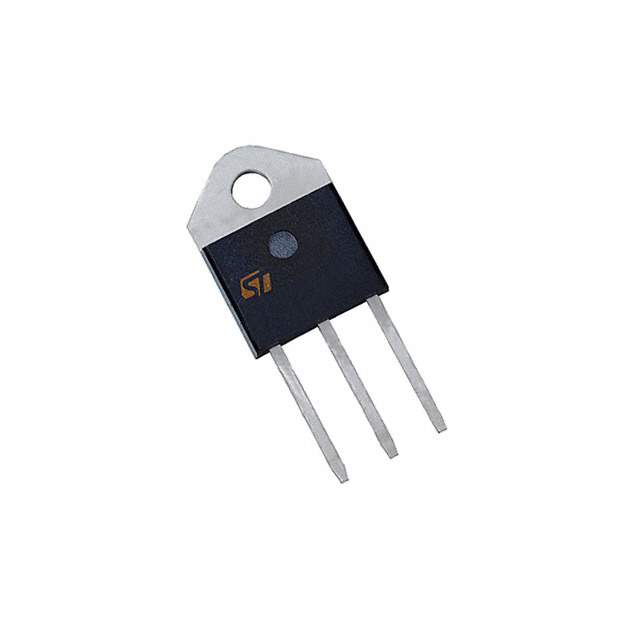

This state-of-the-art triac features a high immunity to dV/dt and can withstand high current surges, ensuring reliable operation even in the most demanding environments. The BTA41-700B is housed in a RD91 insulated package, which provides optimal thermal transfer and insulation rated at 2500V RMS. This package ensures that the device remains cool and stable, maximizing its longevity and reliability.

Key Features:

• High Current Rating: Capable of handling 40A RMS continuous on-state currents, making it suitable for high-power applications.
• High Voltage Capability: With a repetitive peak off-state voltage (VDRM/VRRM) of 700V, it can be used in circuits with high voltage requirements.
• Surge Current: Offers excellent surge current capability, ensuring it can handle high inrush currents typical in AC loads.
• Insulated Package: Comes in an RD91 package with 2500V RMS insulation, providing safety and reliability through superior thermal and electrical insulation.
• dV/dt Immunity: Features a high dV/dt capability which protects the device against rapid voltage changes.
• Gate Trigger Current: A low gate trigger current (IGT) makes the BTA41-700B easy to drive with microcontrollers and other logic devices.

Applications:

• Motor control circuits
• Industrial and domestic lighting
• Heating and thermostat controls
• AC power switching
• Static relays
• Other heavy-duty AC power control applications

The BTA41-700B from STMicroelectronics combines high power handling with robust performance, making it an excellent choice for designers and engineers looking to create reliable and efficient AC power control systems.
