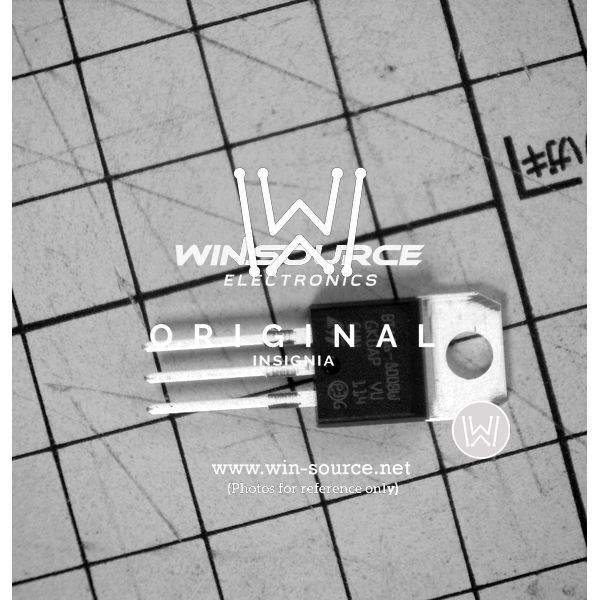

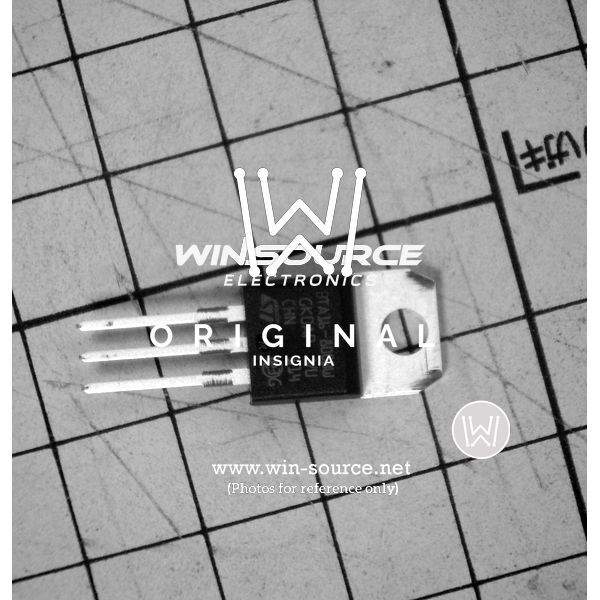

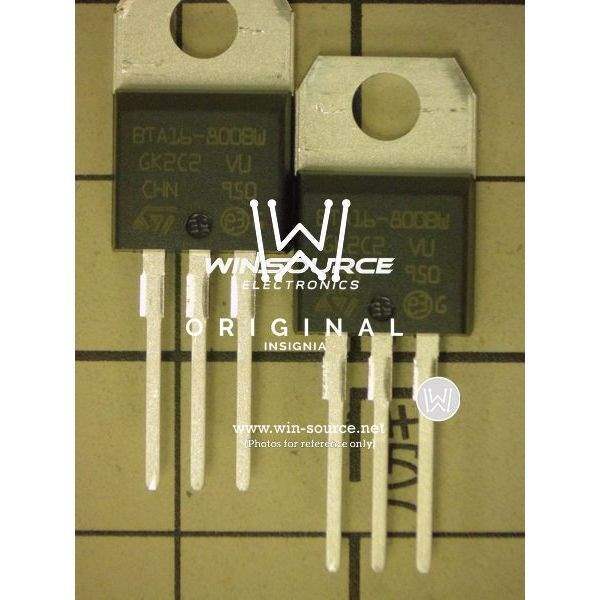

BTA16-800BWRG STMicroelectronics BTA16-800BWRG Real Image BTA16-800BWRG real image BTA16-800BWRG real image2804 BTA16-800BWRG real image2805
Same model may have multiple batches, images only for reference.
BTA16-800BWRG STMicroelectronics BTA16-800BWRG Real Image BTA16-800BWRG real image BTA16-800BWRG real image2804 BTA16-800BWRG real image2805
BTA16-800BWRG STMicroelectronics BTA16-800BWRG Real Image BTA16-800BWRG real image BTA16-800BWRG real image2804 BTA16-800BWRG real image2805
Same model may have multiple batches, images only for reference.

BTA16-800BWRG

Part No BTA16-800BWRG
Manufacturer STMicroelectronics
Catalog Triacs
Description TRIAC ALTERNISTOR 800V TO220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Triac Type Alternistor - Snubberless
Voltage - Off State 800V
Current - On State (It (RMS)) (Max) 16A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 160A, 168A
Current - Gate Trigger (Igt) (Max) 50mA
Current - Hold (Ih) (Max) 50mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 091905-BTA16-800BWRG
Family Name BTA16-800BW
Introduction Date December 06, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTA16-800BWRG CAD Model

Description

BTA16-800BWRG Triac Component

The BTA16-800BWRG is a robust triac component crafted to manage high power AC switching. Its features and build make it ideal for industrial applications and heavy-duty consumer electronics.

  • Heater Control Systems
  • AC Motor Drives
  • Lighting Controls

Features and Benefits

  • 800V Maximum Voltage: Suitable for high voltage applications.
  • Durable Construction: Designed to withstand harsh operating conditions.
  • Efficient Power Management: Reduces energy losses during operation.

This triac remains a popular choice for engineers seeking a reliable component for complex power management tasks.
