Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Reel - TR
Part Status Obsolete(EOL)
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 70V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Maximum) @ If 1V @ 15mA
Current - Reverse Leakage @ Vr 10μA @ 70V
Operating Temperature - Junction 150°C (Maximum)
Mounting SMD
Package 6-TSSOP, SC-88, SOT-363
Manufacturer Package SOT-323-6L
Win Source Part Number 1151458-BAS70-08SFILM
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name BAS70-08S
Introduction Date July 14, 2006
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BAS70-08SFILM CAD Model

Description

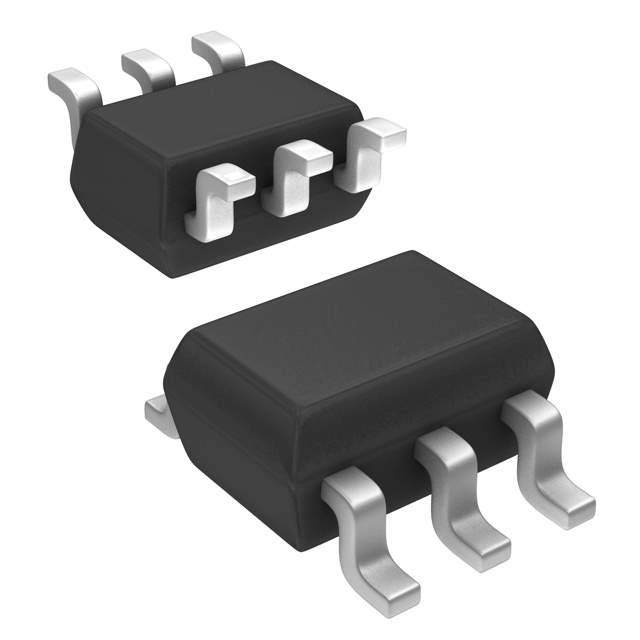

STMicroelectronics BAS70-08SFILM Schottky Diode

The BAS70-08SFILM is a high-quality, surface-mount Schottky barrier diode designed and produced by STMicroelectronics, a global semiconductor leader. This diode is engineered to offer fast switching capabilities with low forward voltage drop, making it an excellent choice for high-efficiency applications. The BAS70-08SFILM is a dual diode device, which means it contains two independent Schottky diodes in a single package, providing flexibility and space-saving benefits for various electronic circuits.

Key Features

  • Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances overall system efficiency by reducing power loss during operation.
  • Fast Switching Speed: Its fast switching capability ensures minimal losses in high-frequency applications and makes it suitable for switching power supplies, converters, and other high-speed switching designs.
  • Surface-Mount Package: The BAS70-08SFILM comes in a compact SOT-23 package, ideal for space-constrained applications and facilitating easier mounting on printed circuit boards (PCBs).
  • Dual Diode Configuration: The integrated dual diode configuration allows for design flexibility and can be used in various circuit topologies, including rectification and protection circuits.
  • High Reliability: This product is designed for high reliability and stability over a wide operating temperature range, ensuring consistent performance in diverse environments.

Applications

The BAS70-08SFILM is versatile and finds use in a multitude of electronic applications. It is commonly employed in high-frequency rectification circuits, voltage clamping applications, and protection circuits against overvoltage spikes. Additionally, it is suitable for use in battery-powered devices, power management systems, and portable electronics where power efficiency is crucial.

Environmental and Quality Standards

STMicroelectronics is committed to environmental sustainability and quality. The BAS70-08SFILM complies with the RoHS directive and is lead-free, minimizing the environmental impact. The diode is also produced in ISO 9001 certified facilities, ensuring that it meets the highest quality standards for electronic components.
