Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel
Status Obsolete
Logic Type Inverter
Number of Inputs 1
Supply Voltage (V) 1.65V ~ 5.5V
Current - Quiescent (Maximum) 10μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay at V, Max CL 4.2ns at 5V, 50pF
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD

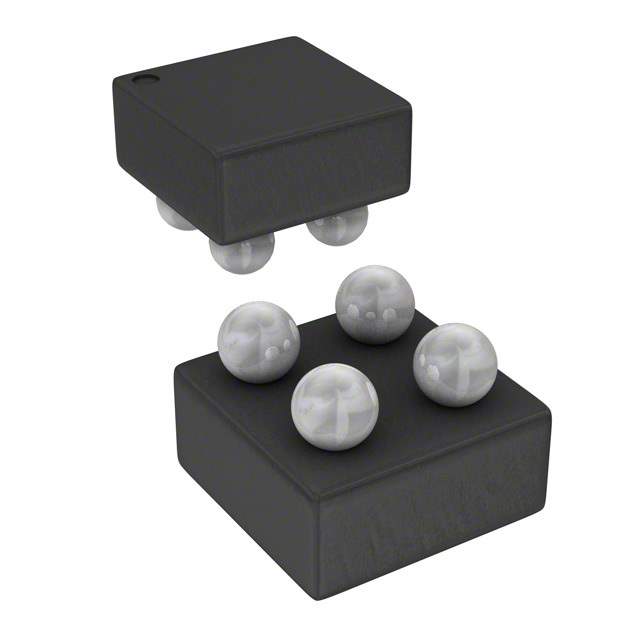

Supplier Device Package 4-FlipChip (1.07x1.07)
Manufacturer Package 4-WFBGA, FCBGA
Family Part Number 74LX1G04
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133408-74LX1G04BJR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74LX1G04BJR CAD Model

Description

STMicroelectronics 74LX1G04BJR - High-Speed CMOS Logic Single Inverter

The 74LX1G04BJR is a cutting-edge logic inverter device manufactured by STMicroelectronics, a leader in semiconductor solutions. This device is a part of the 74LX series, which is known for its high-speed CMOS logic operations. The 74LX1G04BJR is designed to offer optimal performance for a wide range of applications that require logic inversion functions.

With its single inverter gate, the 74LX1G04BJR is ideal for implementing the NOT function in digital circuits. The inverter takes a single input signal and outputs the inverse value, which is a fundamental operation in digital electronics. Its high-speed operation ensures that it can keep up with the demands of modern high-frequency digital systems.

The device comes in a compact SOT-23-5 package, making it suitable for space-constrained applications. Despite its small size, it does not compromise on performance or reliability. The 74LX1G04BJR operates over a broad voltage range from 1.65V to 5.5V, allowing it to be used in various logic level environments. This wide operating range also makes it compatible with TTL (Transistor-Transistor Logic) levels, ensuring easy integration into existing systems without the need for additional level shifting components.

Key features of the 74LX1G04BJR include its low power consumption, which is critical for battery-operated and power-sensitive designs. The device also exhibits a high noise immunity, ensuring stable operation even in electrically noisy environments. Furthermore, the input is tolerant to 5V, which provides additional flexibility in mixed-voltage applications.

STMicroelectronics has designed the 74LX1G04BJR with an emphasis on robustness. It offers ESD (Electrostatic Discharge) protection, safeguarding the device during handling and operation. This feature is particularly important in industrial applications where ESD events are common.

In summary, the 74LX1G04BJR from STMicroelectronics is a high-performance, versatile logic inverter that is perfect for a variety of electronic designs requiring efficient logic inversion. Its small package, broad voltage range, and low power consumption make it an excellent choice for designers looking to optimize their digital systems.
