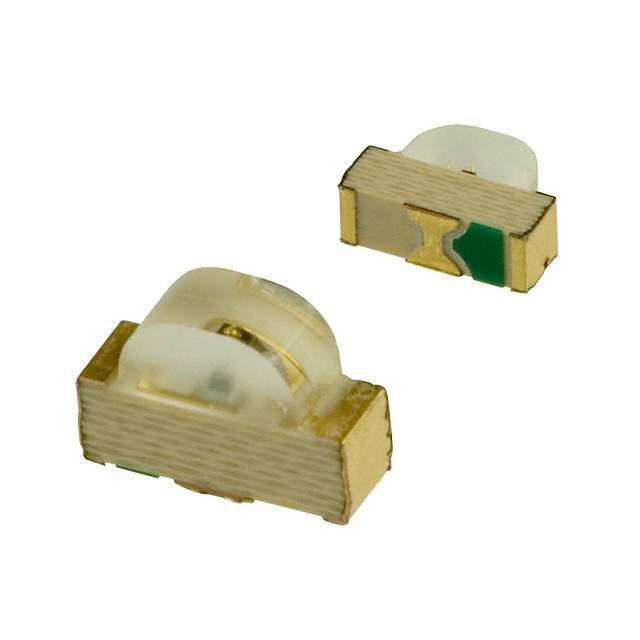

PY1101F-TR Real Image
Same model may have multiple batches, images only for reference.

PY1101F-TR

Part No PY1101F-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2SMD R/A
Datasheet
PY1101F-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 8.8mcd
Lens Style/Size Rectangle with Domed Top, 2.00mm x 1.00mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 131°, 120°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Height (Max) 1.00mm
Win Source Part Number 106201-PY1101F-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PY1101F-TR CAD Model

Description

The Stanley Electric Co PY1101F-TR is a green LED that is used in various electronic devices. It has a viewing angle of 131° and 120° and has a millicandela rating of 8.8mcd. This LED has a forward voltage of 2.1V and can be surface mounted with a right-angle mount. It has a rectangular shape with a domed top and has a size of 2.00mm x 1.00mm. The wavelength of this LED is dominant at 572nm and peak at 570nm.
