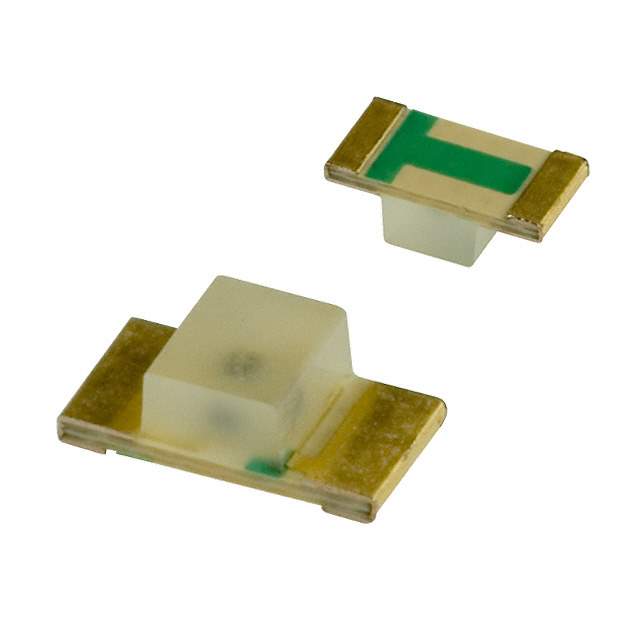

BR1111R-TR Real Image
Same model may have multiple batches, images only for reference.

BR1111R-TR

Part No BR1111R-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 1206 SMD
Datasheet
BR1111R-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 12.7mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.60mm
Forward Voltage 1.7V
Current - Test 20mA
Viewing Angle 149°, 151°
Mounting Surface Mount, Bottom Entry
Wavelength - Dominant 647nm
Wavelength - Peak 660nm
Case / Package 3216 Type
Height (Max) 1.30mm
Win Source Part Number 1024208-BR1111R-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BR1111R-TR CAD Model

Description

This electronic component is a rectangle with a flat top LED from Stanley Electric Co. with a lens size of 1.40mm x 1.60mm.

  • Millicandela Rating: 12.7mcd
  • Forward Voltage: 1.7V
  • Viewing Angle: 149° and 151°
  • Lens Transparency: diffused white
  • Color: red
  • Mounting: surface mount with a bottom entry
  • Package: reel
  • Case/Package: 3216 type
  • Current Test: 20mA
  • Dominant Wavelength: 647nm
  • Peak Wavelength: 660nm
