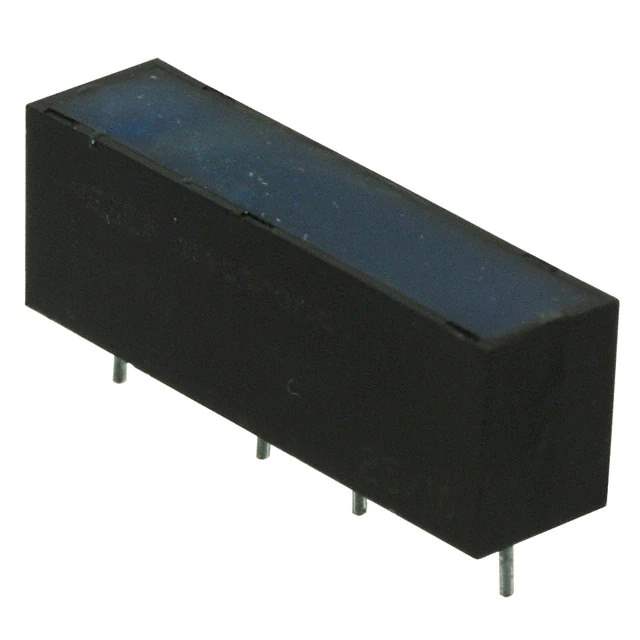

SIL24-1A72-71L Real Image
Same model may have multiple batches, images only for reference.

SIL24-1A72-71L

Part No SIL24-1A72-71L
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 0.5A 24V
Datasheet
SIL24-1A72-71L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series SIL
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 12 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 3.6 VDC
Operate Time 0.7 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 2 kOhms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 933802-SIL24-1A72-71L
Ultra Librarian 3D Model Ultra Librarian SIL24-1A72-71L CAD Model

Description

The SIL24-1A72-71L is a reed relay from Standex-Meder Electronics.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 500mA
  • Coil Voltage: 24VDC
  • Coil Resistance: 2 kOhms
  • Switching Voltage: 200VAC and 200VDC (max)
  • Release Time: 0.1ms
  • Package: Tube
  • Package Size: 25 pcs
  • Operating Temperature: -20°C to 70°C
