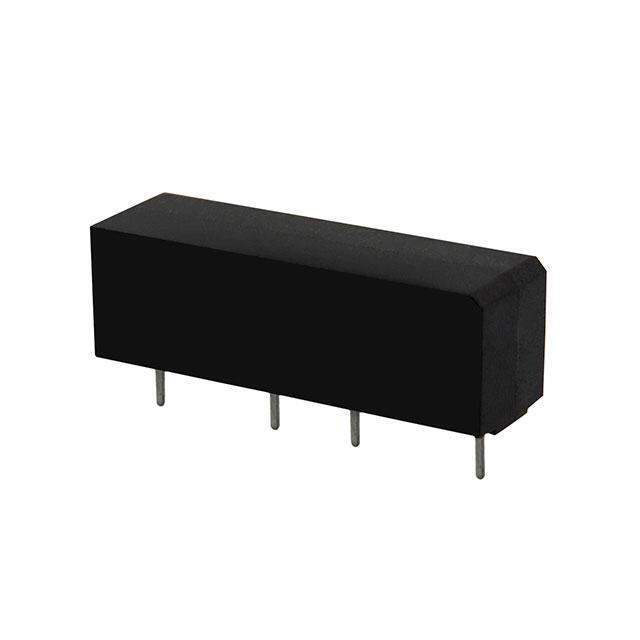

SHV05-1A85-78D2K

Part No SHV05-1A85-78D2K
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 1A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197082-SHV05-1A85-78D2K
Manufacturer Standex-Meder Electronics
Category Relays -Reed Relays
Series SHV
Package Tube
Product Status Active
Mounting Type Through Hole
Operating Temperature -40°C ~ 105°C
Coil Resistance 220 Ohms
Termination Style PC Pin
Coil Current 22 mA
Ultra Librarian 3D Model Ultra Librarian SHV05-1A85-78D2K CAD Model

Description

The SHV series relay is a through-hole reed relay, manufactured by Standex-Meder Electronics.

  • Package: Tube
  • Coil Resistance: 220 Ohms
  • Coil Current: 22 mA
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
  • Termination Style: PC Pin
