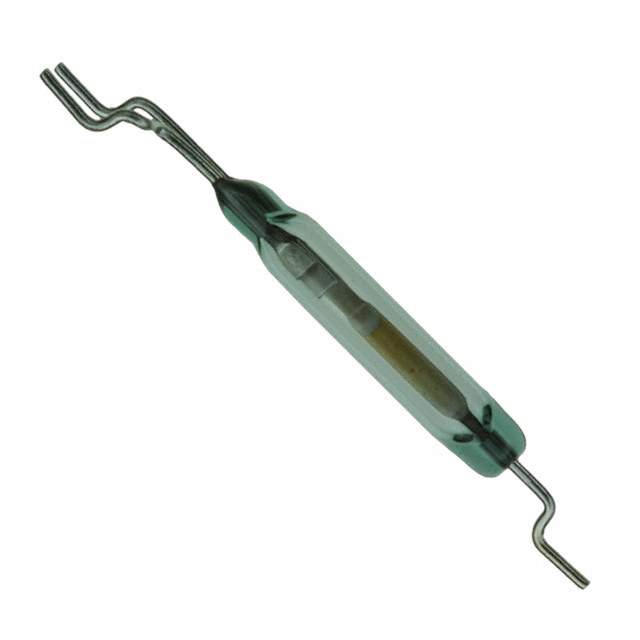

MK23-90-C-2 Real Image
Same model may have multiple batches, images only for reference.

MK23-90-C-2

Part No MK23-90-C-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description SWITCH REED SPDT 500MA 175V / Glass Body Reed Switch SPDT 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 175 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Standex-Meder Electronics
Series MK23
Package Tape & Reel
Type Glass Body Reed
Circuit SPDT
Operate Range 15 ~ 20AT
Current - Switching 500mA (AC/DC)
Voltage - Switching AC 175 V
Voltage - Switching DC 175 V
Power - Rated 10W
Operate Time 0.7 ms
Release Time 1.5 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 1.000" (25.40mm)
Size - Body 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board 0.110" (2.80mm)
Temperature Range - Operating -40°C ~ 130°C
Capacitance 1.5 pF
Current - Carry 1A (AC/DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 9231291520,374-1074-6,Q9737059,374-1074-2,374-1074-1,MK2390C2
Standard Package 2,500
Win Source Part Number 1203311-MK23-90-C-2
Ultra Librarian 3D Model Ultra Librarian MK23-90-C-2 CAD Model

Description

The MK23-90-C-2 is a glass body reed switch designed for use in magnetic switches.

  • Package: Tape and reel
  • Termination Style: Gull wing
  • Win Source Part Number: 1203311-MK23-90-C-2
  • Series: MK23
  • Circuit: SPDT
  • Operate Time: 0.7 ms
  • Release Time: 1.5 ms
  • Operate Range: 15 ~ 20AT
  • Release Range: Not specified
  • Current Switching: 500mA (AC/DC)
  • Voltage Switching AC/DC: 175 V
  • Overall Length: 1.000 inches (25.40mm)
  • Body Size: 0.100 inches Dia x 0.551 inches L (2.54mm x 14.00mm)
  • Power Rated: 10W
  • Current Carry: 1A (AC/DC)
  • Temperature Range: -40°C ~ 130°C
