Same model may have multiple batches, images only for reference.

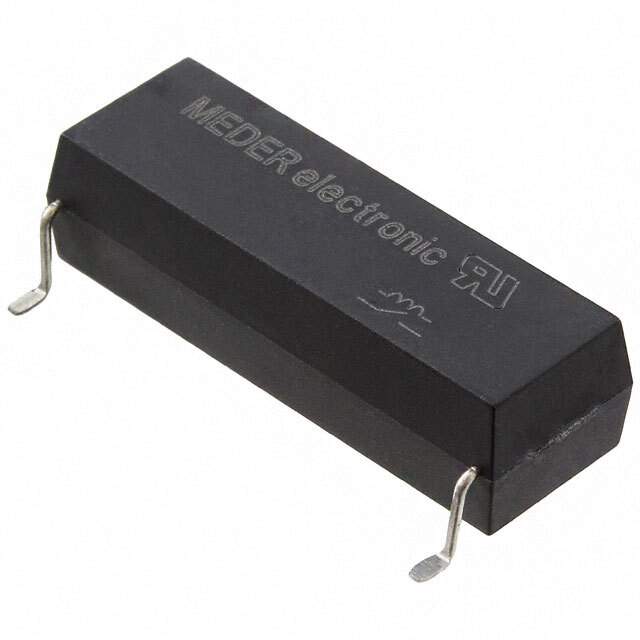

KT24-1A-40L-SMD Real Image
Same model may have multiple batches, images only for reference.

KT24-1A-40L-SMD

Part No KT24-1A-40L-SMD
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description REED RELAY 1 FORM A 24V SMD
Datasheet
KT24-1A-40L-SMD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series KT
Package Tape & Reel
Mounting Type Surface Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 13.3 mA
Coil Type Non Latching
Termination Style Gull Wing
Seal Rating Sealed - Fully
Must Operate Voltage 16 VDC
Must Release Voltage 2.9 VDC
Temperature Range - Operating -40°C ~ 100°C
Coil Resistance 1.8 kOhms
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1351870-KT24-1A-40L-SMD
Ultra Librarian 3D Model Ultra Librarian KT24-1A-40L-SMD CAD Model

Description

The Standex-Meder Electronics Reed Relay with SPST-NO (1 Form A) contact form is suitable for various applications.

  • Contact Form: SPST-NO (1 Form A)
  • Termination Style: Gull Wing
  • Seal: Fully Sealed
  • Mounting Type: Surface Mount
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.8 kOhms
  • Coil Current: 13.3 mA
  • Contact Rating (Current): 1A
  • Switching Voltage: 1000VAC and 1000VDC max
  • Operating Temperature: -40°C to 100°C
  • Must Operate Voltage: 16VDC
  • Must Release Voltage: 2.9VDC
