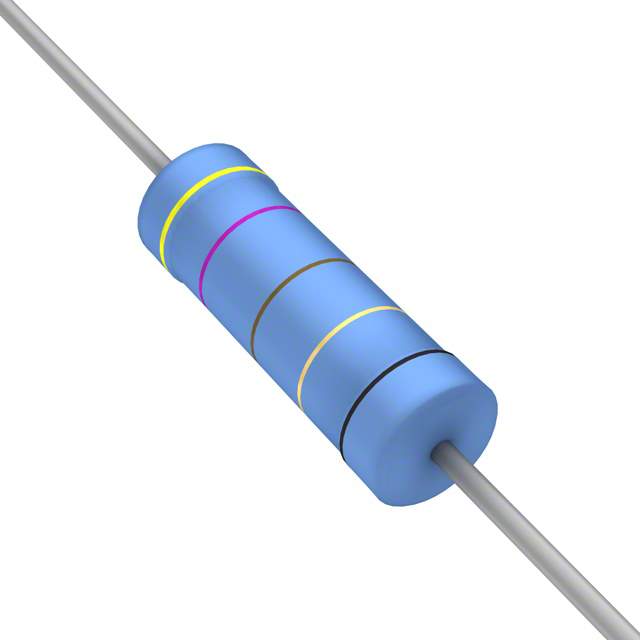

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Stackpole Electronics Inc
Series ASRM
Package Cut Tape (CT) Tape & Box (TB)
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient 0/ -1800ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.197" Dia x 0.591" L (5.00mm x 15.00mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1348784-ASRM2JA470R
Ultra Librarian 3D Model Ultra Librarian ASRM2JA470R CAD Model

Description

The Stackpole Electronics Inc ASRM2JA470R is a through-hole resistor designed for use in electronic devices.

  • Features: Flame Retardant, Pulse Withstanding, and Safety
  • Size: 0.197" Dia x 0.591" L (5.00mm x 15.00mm)
  • Package Type: Cut Tape (CT) Tape & Box (TB)
  • Tolerance: ±5%
  • Temperature Coefficient: 0/ -1800ppm/°C
  • Power Rating: 2W
  • Composition: Metal Film
  • Number of Terminations: 2
  • Resistance: 470 Ohms
  • Configuration: Axial
  • Supplier Device Package: Axial
  • Temperature Range: -55°C ~ 155°C
  • ECCN: EAR99
