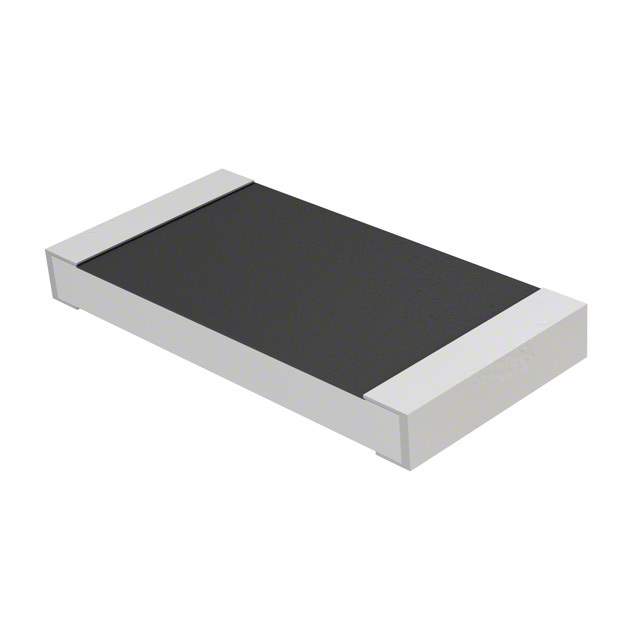

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCF
Package Tape & Reel
Resistance 24 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Ratings AEC-Q200
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names -RMCF2010JT24R0CT,RMCF1/224JR-ND,RMCF2010JT24R0DKR,RMCF2010JT24R0TR,-RMCF2010JT24R0,RMC1/224JR-ND,RMC 1/2 24 5% R,RMCF1/224JR,RMCF2010JT24R0CT,RMC1/224JR,-RMCF2010JT24R0TR,-RMCF2010JT24R0DKR,-RMCF2010JT24R0-ND,RMCF2010JT24R0-ND,RMC1/2245%R,RMC1/2245%R-ND
Standard Package 4,000
Win Source Part Number 1134217-RMCF2010JT24R0
Ultra Librarian 3D Model Ultra Librarian RMCF2010JT24R0 CAD Model

Description

The RMCF2010JT24R0 is a chip resistor that belongs to the RMCF series and is manufactured by Stackpole Electronics Inc.

  • Series: RMCF
  • Win Source Part Number: 1134217-RMCF2010JT24R0
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • AEC-Q200 Rated: Yes
  • Power Rating: 0.75W or 3/4W
  • Package: Tape and reel
  • Standard Package: 4,000
  • Resistance: 24 Ohms
  • Suitable for: Various electronic applications requiring a chip resistor
