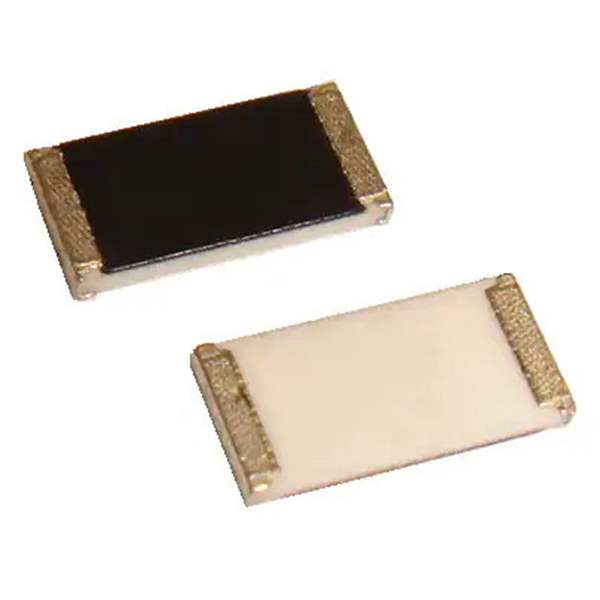

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRN
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Ratings -
Size / Dimension 0.197" L x 0.097" W (5.00mm x 2.45mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375519-CSRN2010FT10L0
Ultra Librarian 3D Model Ultra Librarian CSRN2010FT10L0 CAD Model

Description

The 1375519-CSRN2010FT10L0 is a chip resistor from Stackpole Electronics Inc.

  • Mounting Type: Surface Mount
  • Package / Case: 2010 (5025 Metric)
  • Resistance: 10 MOhms
  • Power (Watts): 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±250ppm/°C
  • Series: CSRN
  • Operating Temperature: -55°C ~ 155°C
  • Packaging: Tape & Reel (TR)
  • ECCN: EAR99
  • Composition: Thick Film
  • Number of Terminations: 2
