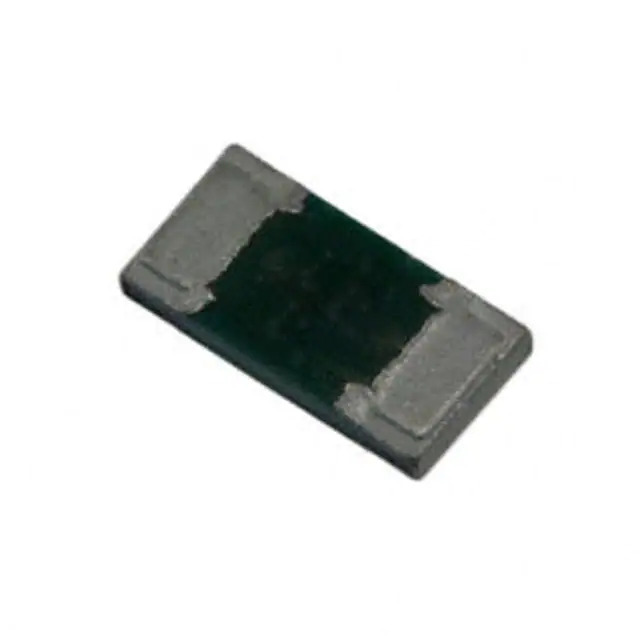

Same model may have multiple batches, images only for reference.
CSRF1206FT10L0 Stackpole Electronics Inc.
Same model may have multiple batches, images only for reference.

CSRF1206FT10L0

Part No CSRF1206FT10L0
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 1W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.033" (0.85mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375139-CSRF1206FT10L0
Ultra Librarian 3D Model Ultra Librarian CSRF1206FT10L0 CAD Model

Description

The Stackpole Electronics Inc CSRF1206FT10L0 is a chip resistor designed for surface mount applications.

  • Series: CSRF
  • Mounting Type: Surface Mount
  • Package / Case: 1206 (3216 Metric)
  • Resistance (Ohms): 10 MOhms
  • Power (Watts): 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Automotive: AEC-Q200
  • Features: Moisture Resistant
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.122" L x 0.061" W (3.10mm x 1.55mm)
  • Height - Seated (Max): 0.033" (0.85mm)
  • Lifecycle Status: Active
  • REACH: Unaffected
