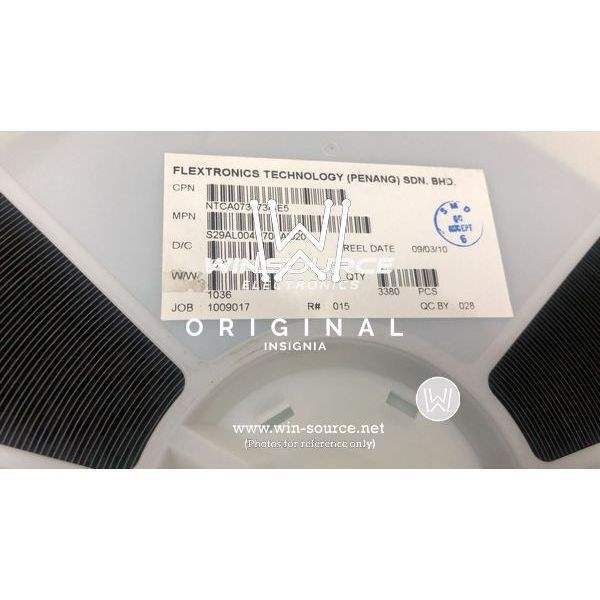

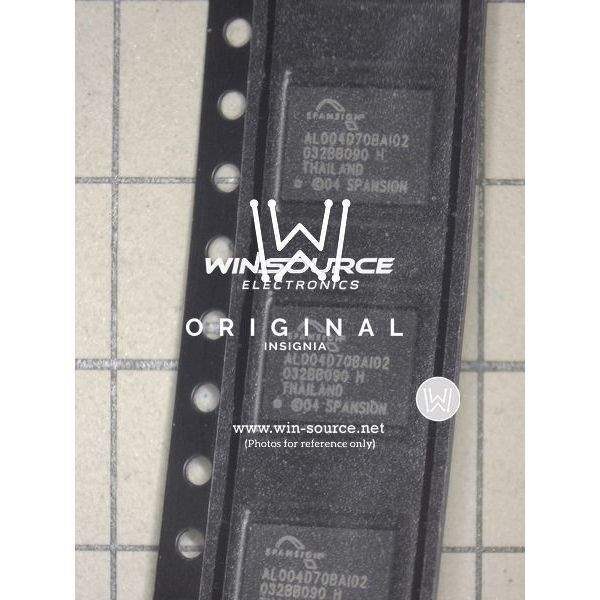

S29AL004D70BAI020 Spansion S29AL004D70BAI020 real image S29AL004D70BAI020 label picture
Same model may have multiple batches, images only for reference.
S29AL004D70BAI020 Spansion S29AL004D70BAI020 real image S29AL004D70BAI020 label picture
S29AL004D70BAI020 Spansion S29AL004D70BAI020 real image S29AL004D70BAI020 label picture
Same model may have multiple batches, images only for reference.

S29AL004D70BAI020

Part No S29AL004D70BAI020
Manufacturer Spansion
Catalog Flash
Description 4 Megabit (512 Kx 8-Bit/256 K x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory / NOR Flash Parallel 3V/3.3V 4M-bit 512K x 8/256K x 16 70ns 48-Pin FBGA Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Spansion
Category Integrated Circuits(ICs)
Family Memory
Win Source Part Number 185860-S29AL004D70BAI020
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name S29AL004D
Introduction Date January 19, 2004
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian S29AL004D70BAI020 CAD Model

Description

The S29AL004D70BAI020 is a memory integrated circuit manufactured by Spansion.

  • Family: It is a common-used part in the S29AL004D family
  • Alternative Parts: M29W400BT55ZA6T, M29W400DB45ZA1E, M29W400DT55ZE1F, and M29W400DB55ZA6E.
  • Introduction Date: January 19, 2004
  • Status: Obsolete/end of life.
  • ECCN: EAR99
  • Country of Origin: Thailand
  • Supply and Demand Status: Balanced.
