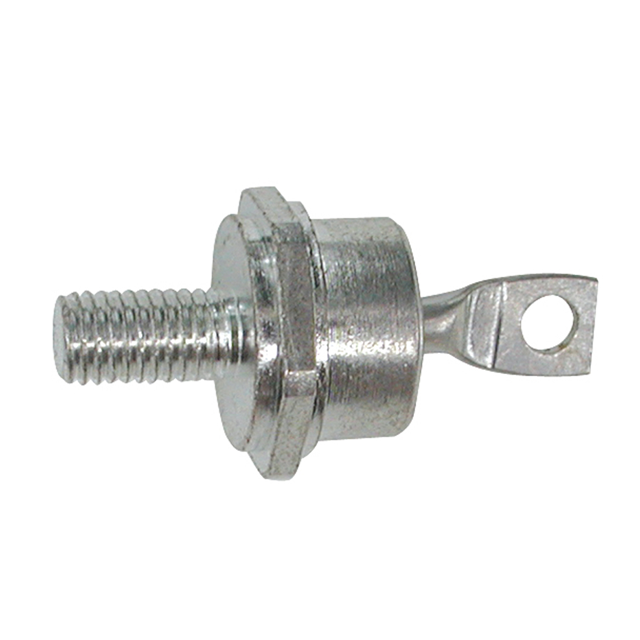

1N1184RA Real Image
Same model may have multiple batches, images only for reference.

1N1184RA

Part No 1N1184RA
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DO5 35 AMP SILICON RECTFIER / Diode Standard, Reverse Polarity 12A Stud Mount DO-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Solid State Inc.
Packaging Box
Diode Type Standard, Reverse Polarity
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 30 A
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Stud Mount
Case / Package DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 200°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2383-1N1184RA
Standard Package 10
Win Source Part Number 1324056-1N1184RA
Ultra Librarian 3D Model Ultra Librarian 1N1184RA CAD Model

Description

The 1N1184RA is a diode manufactured by Solid State Inc.

  • Standard Recovery Time: greater than 500ns
  • Current: up to 12A
  • Voltage Forward: 1.2V @ 30A
  • Package: DO-4
  • Mounting: stud
  • Operating Temperature Range: -65°C to 200°C
