Same model may have multiple batches, images only for reference.

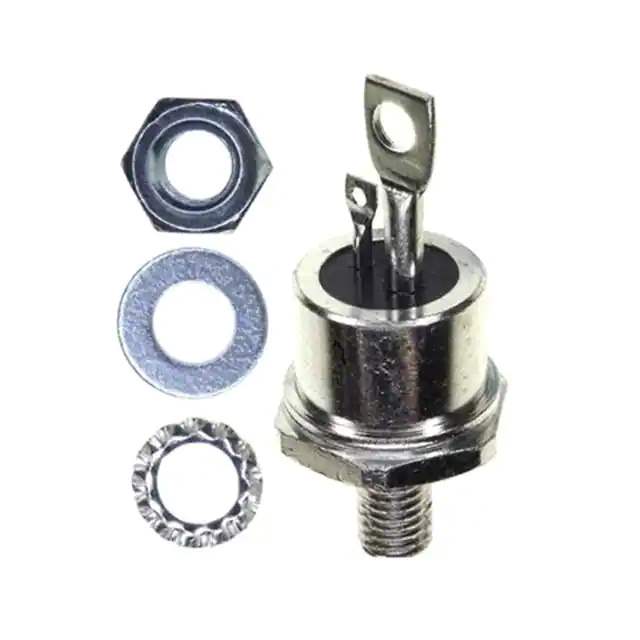

50RIA120 Real Image
Same model may have multiple batches, images only for reference.

50RIA120

Part No 50RIA120
Manufacturer Solid State Inc.
Catalog SCRs - Single
Description SCR THYRISTOR 50 AMP  TO 65
Datasheet
50RIA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Solid State Inc.
Series 50RIA
Package Bulk
Product Status Active
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 50 A
Current - On State (It (RMS)) (Max) 80 A
Current - Hold (Ih) (Max) 200 mA
Current - Off State (Max) 15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1430A, 1490A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C (TC)
Mounting Type Stud Mount
Package / Case TO-208AC, TO-65-3, Stud
Supplier Device Package TO-208AC (TO-65)
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847360-50RIA120
Ultra Librarian 3D Model Ultra Librarian 50RIA120 CAD Model

Description

The 847360-50RIA120 is a thyristor belonging to the SCRs category.

  • Category: SCRs
  • Series: 50RIA
  • Voltage - Off State: 1.2 kV
  • Voltage - Gate Trigger (Vgt): 2.5 V
  • Current - Gate Trigger (Igt): 100 mA
  • Voltage - On State (Vtm): 1.6 V
  • Current - On State (It (AV)): 50 A
  • Current - Off State (Max): 15 mA
  • Mounting Type: Stud Mount
  • Operating Temperature: -40°C ~ 125°C
  • Product Status: Active
  • Manufacturer: Solid State Inc.
