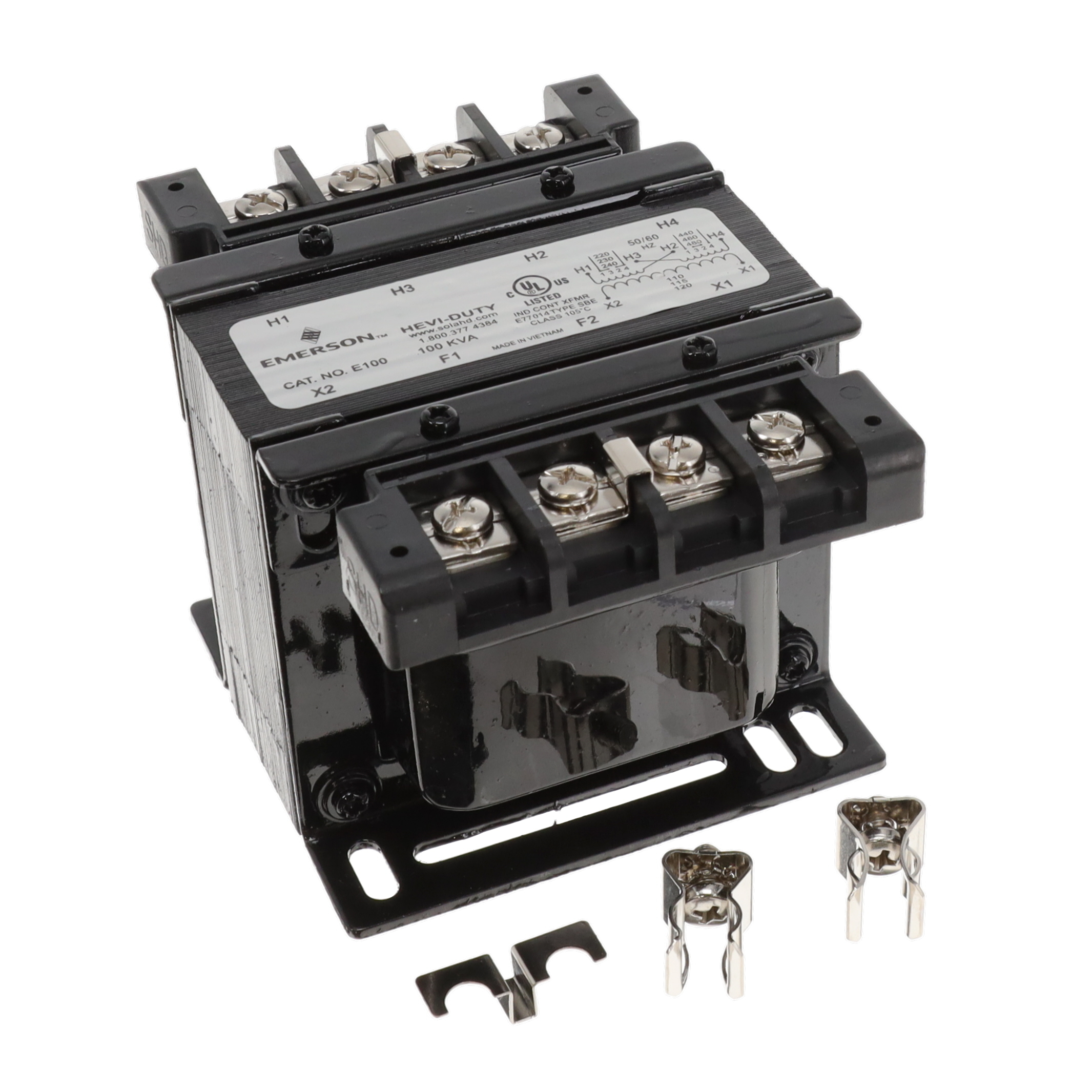

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 120V, 240V
Voltage - Secondary (Full Load) 24V
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Single
Center Tap Yes
Power - Max 150VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1545147-E150E
Ultra Librarian 3D Model Ultra Librarian E150E CAD Model
