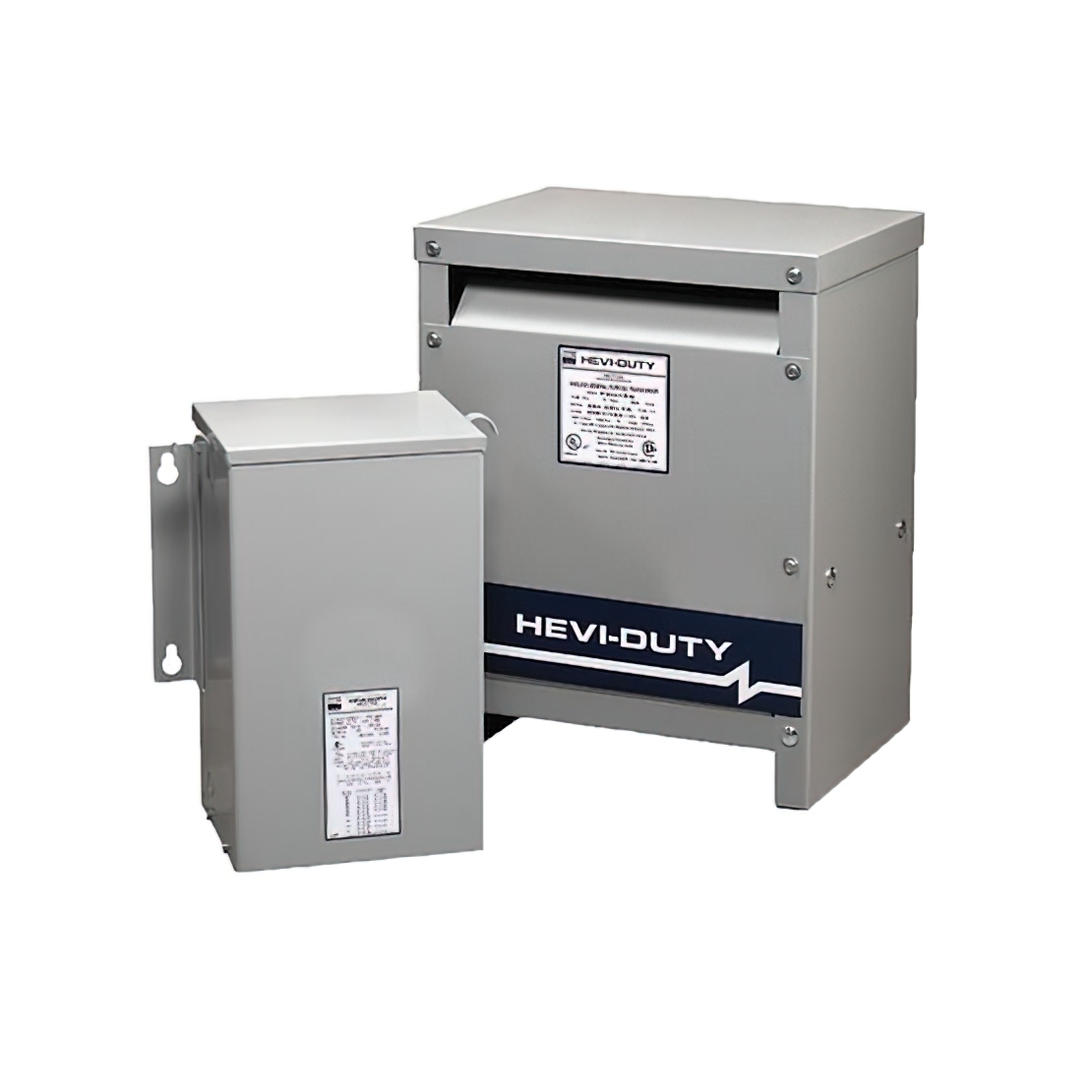

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 208V, 240V, 415V, 480V, 600V
Primary Winding(s) Single, Multiple Taps
Secondary Winding(s) Dual
Center Tap No
Power - Max 750VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 162.10mm L x 152.40mm W
Height - Seated (Max) 143.00mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545123-CE750MC
Ultra Librarian 3D Model Ultra Librarian CE750MC CAD Model
