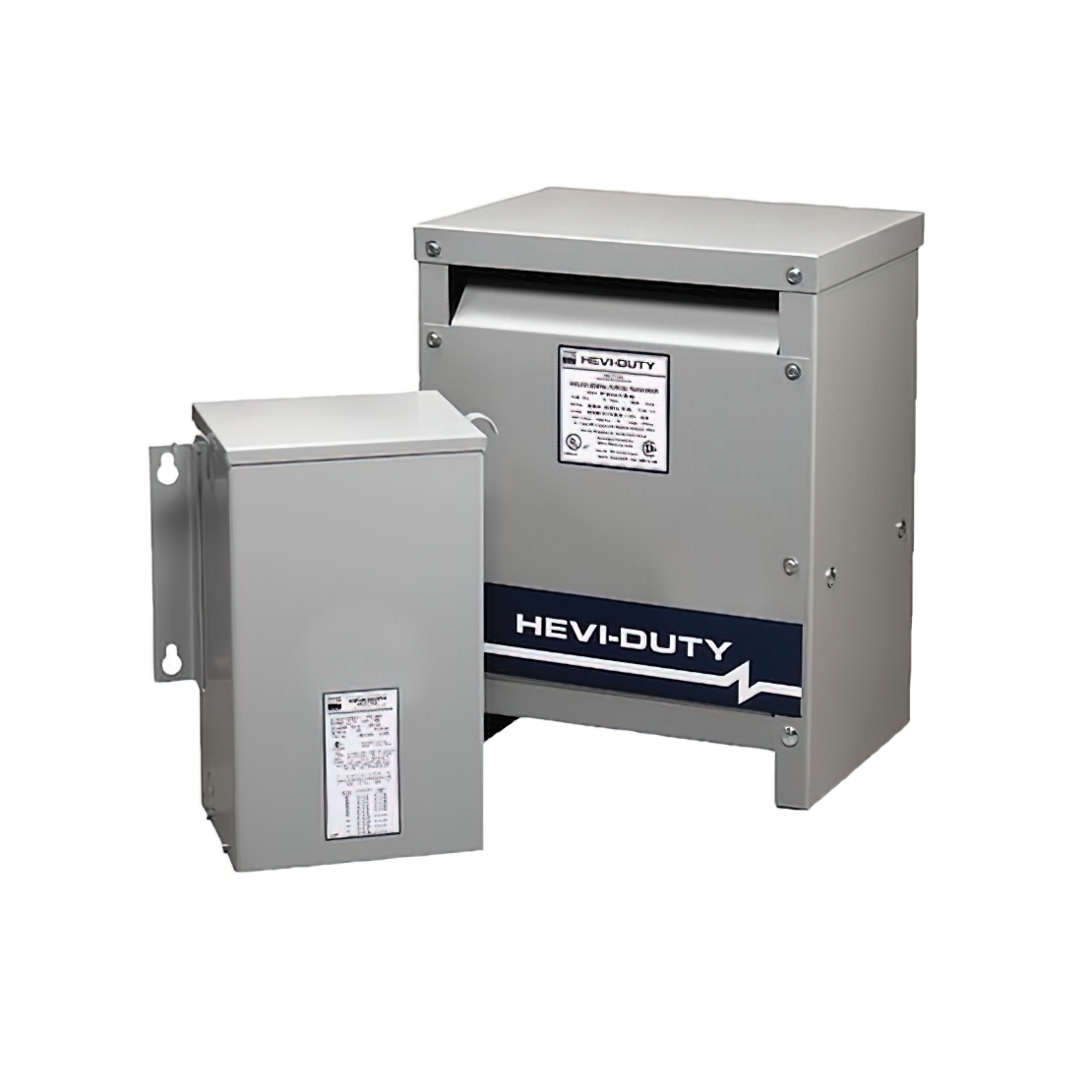

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Primary Winding(s) Single, Multiple Taps
Center Tap Yes
Power - Max 1000VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545119-CE1000MH
Ultra Librarian 3D Model Ultra Librarian CE1000MH CAD Model
