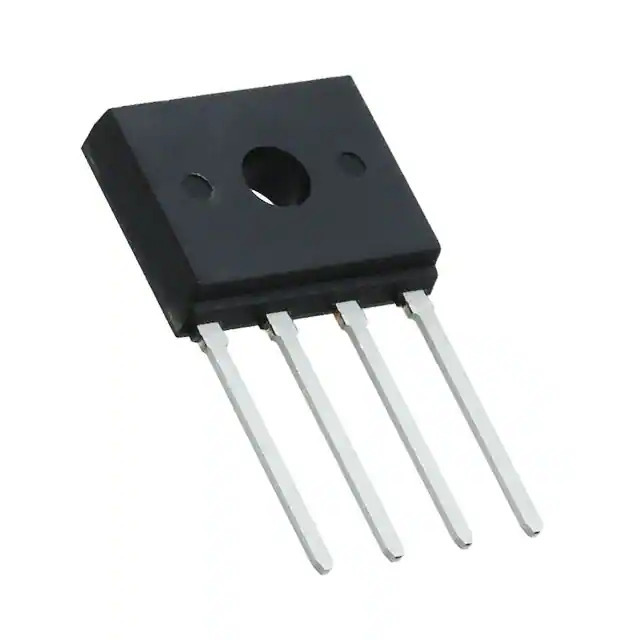

Same model may have multiple batches, images only for reference.
UG6KB100 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

UG6KB100

Part No UG6KB100
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 6A D3K
Datasheet
UG6KB100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 6 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package D3K
Base Product Number UG6KB100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367772-UG6KB100
Ultra Librarian 3D Model Ultra Librarian UG6KB100 CAD Model

Description

The UG6KB100 is a bridge rectifier diode with a maximum peak reverse voltage of 1kV from SMC Diode Solutions.

  • Maximum Peak Reverse Voltage: 1kV
  • Mounting Type: Through Hole
  • Package: 4-ESIP
  • Average Rectified Current: 6A
  • Voltage Forward: 1.1V @ 6A
  • Operating Temperature: -55°C to 150°C
  • Status: Active
