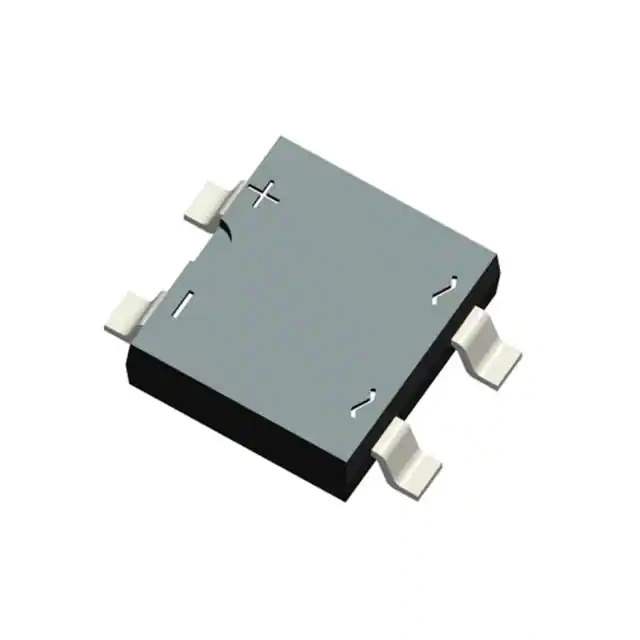

MB8F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package MBF
Base Product Number MB8
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 633081-MB8F
Ultra Librarian 3D Model Ultra Librarian MB8F CAD Model

Description

The MB8F is a bridge rectifier diode with a voltage rating of 800V and a maximum forward voltage of 1.1V @ 800mA.

  • Application: It is designed for use in rectifier applications and offers a current average rectified of 500mA.
  • Reverse Leakage Current: The diode has a current reverse leakage of 5μA @ 800V and operates in a temperature range from -55°C to 150°C.
  • Mounting and Package: It is suitable for surface mount applications and comes in a 4-SMD gull wing package.
  • Manufacturer: The MB8F is an active product from SMC Diode Solutions that provides reliable and efficient performance in various electronic circuits.
  • Packaging: It is available in tape and reel packaging with a standard package quantity of 5,000 pcs.
