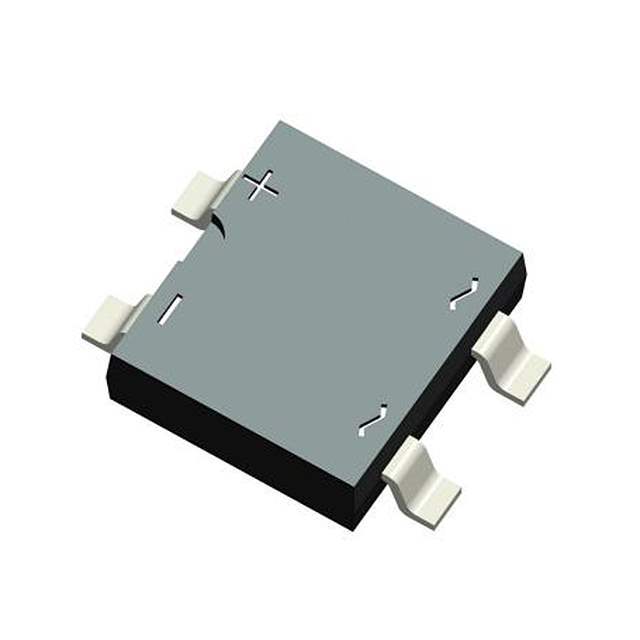

KMB24S SMC Diode Solutions

The KMB24S is a single-phase Schottky bridge rectifier from SMC Diode Solutions. It is a surface mount device with a maximum forward voltage of 550 mV at 2 A and a maximum reverse leakage current of 100 µA at 40 V. The KMB24S has an operating temperature range of -55°C to 150°C (TJ).

Schottky bridge rectifiers are ideal for a wide range of applications, including power supplies, motor control, and battery chargers. They offer a number of advantages over traditional silicon bridge rectifiers, including:

• Lower forward voltage drop, resulting in higher efficiency and lower power loss
• Faster switching speed, which can reduce EMI and improve performance in high-frequency applications
• Lower reverse leakage current, which can improve efficiency and extend battery life

The KMB24S is a versatile and high-performance Schottky bridge rectifier that is well-suited for a wide range of applications. It is particularly well-suited for applications where low forward voltage drop, fast switching speed, and low reverse leakage current are important.

Here are some specific examples of applications where the KMB24S can be used:

• Power supplies for consumer electronics, computers, and other devices
• Motor control applications in industrial and automotive systems
• Battery chargers for power tools, electric vehicles, and other devices
• Solar energy systems
• Uninterruptible power supplies (UPS)
• Switch-mode power supplies (SMPS)

The KMB24S is available in a compact surface mount package, making it ideal for space-constrained applications. It is also RoHS compliant and AEC-Q101 qualified, making it suitable for use in automotive and industrial applications.

Features and Benefits

• Low forward voltage drop (550 mV max @ 2 A)
• Fast switching speed (30 ns max)
• Low reverse leakage current (100 µA max @ 40 V)
• Wide operating temperature range (-55°C to 150°C)
• Surface mount package
• RoHS compliant
• AEC-Q101 qualified

Applications

• Power supplies
• Motor control
• Battery chargers
• Solar energy systems
• UPS
• SMPS

Conclusion

The KMB24S is a versatile and high-performance Schottky bridge rectifier that is well-suited for a wide range of applications. It offers a number of advantages over traditional silicon bridge rectifiers, including lower forward voltage drop, faster switching speed, and lower reverse leakage current. The KMB24S is available in a compact surface mount package and is RoHS compliant and AEC-Q101 qualified.
