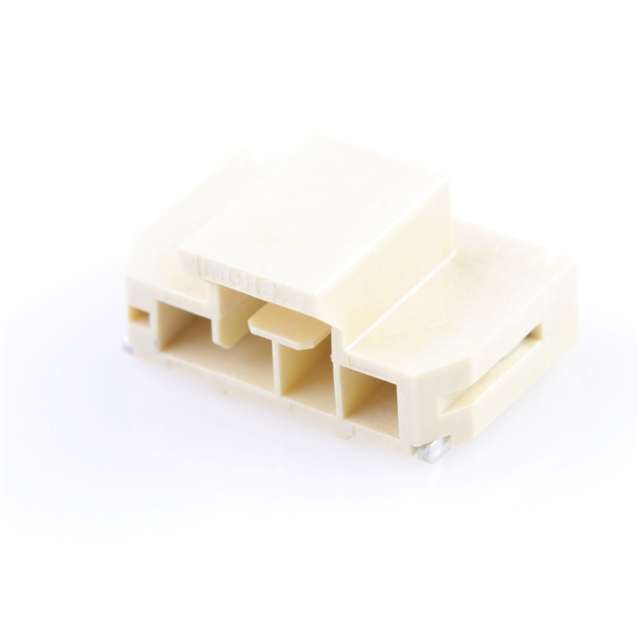

Same model may have multiple batches, images only for reference.
1054302104 Molex
Same model may have multiple batches, images only for reference.

1054302104

Part No 1054302104
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2.5MM
Datasheet
1054302104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 1054302104 CAD Model

Description

Connector Header Surface Mount, Right Angle 4 position 0.098" (2.50mm)
