Same model may have multiple batches, images only for reference.

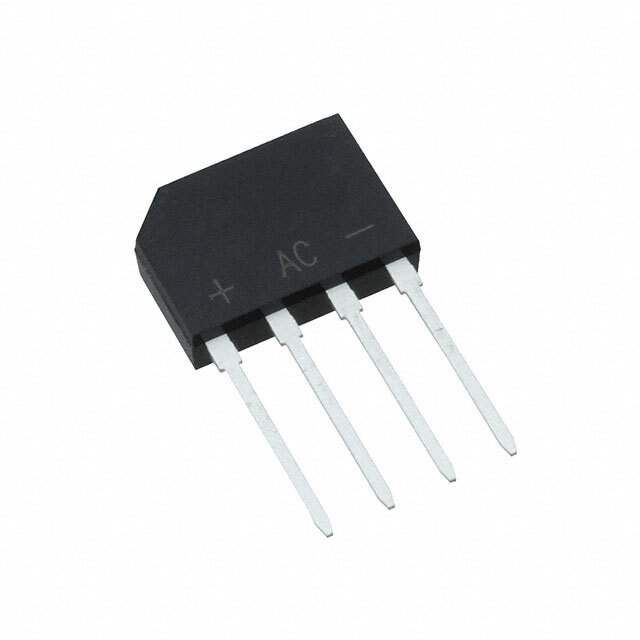

KBP406G Real Image
Same model may have multiple batches, images only for reference.

KBP406G

Part No KBP406G
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 4A KBP
Datasheet
KBP406G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package KBP
Base Product Number KBP406
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850572-KBP406G
Ultra Librarian 3D Model Ultra Librarian KBP406G CAD Model

Description

The KBP406G is a single-phase bridge rectifier designed for standard rectification applications.

  • Peak Reverse Voltage: 600V
  • Average Rectified Current: 4A
  • Forward Voltage Drop: 1.1V @ 4A
  • Mounting: Through-hole
  • Package: 4-ESIP
  • Operating Temperature Range: -55°C to 150°C
  • Packaging: Tube
