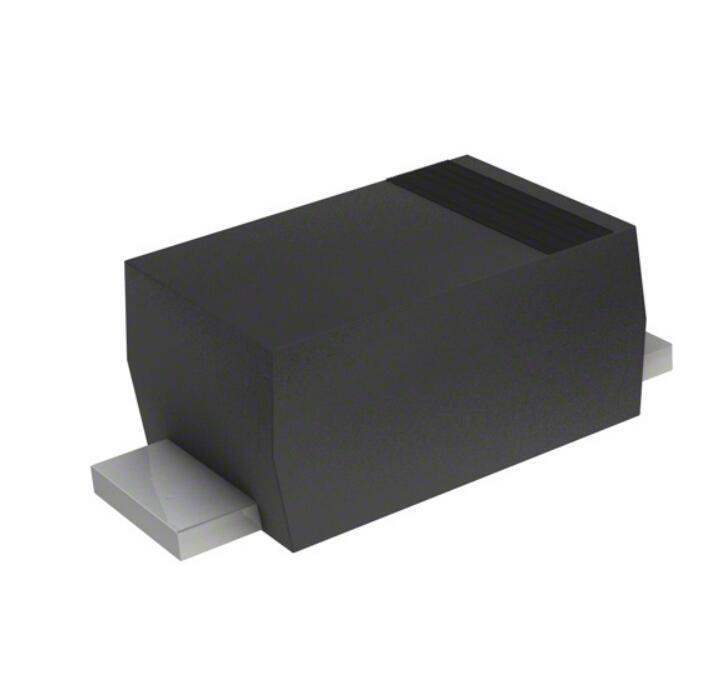

Same model may have multiple batches, images only for reference.

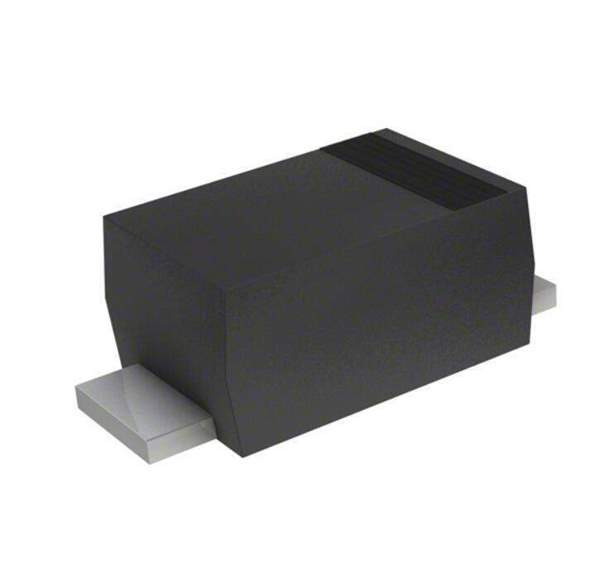

DSS110U SMC Diode Solutions
Same model may have multiple batches, images only for reference.

DSS110U

Part No DSS110U
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 1A SOD123FL
Datasheet
DSS110U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202546-DSS110U
Win Source Part Number Cross
Manufacturer SMC Diode Solutions
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Voltage - Forward (Vf) (Max) @ If 800 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Ultra Librarian 3D Model Ultra Librarian DSS110U CAD Model

Description

The SMC Diode Solutions Schottky diode is a fast recovery diode with a voltage rating of 100V. SMC Diode Solutions ensures availability and support for designs.

  • Voltage Rating: 100V
  • Forward Voltage: 800 mV @ 1A
  • Reverse Leakage Current: 50 µA @ Rated Voltage
  • Package Formats: Tape & reel, Cut tape, Digi-Reel®
  • Product Status: Active
