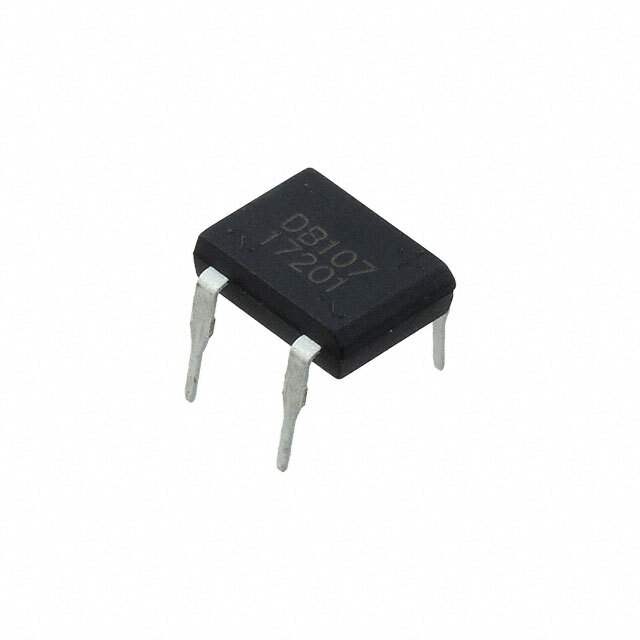

DB106 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.321", 8.15mm)
Supplier Device Package DB-M
Base Product Number DB106
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584100-DB106
Ultra Librarian 3D Model Ultra Librarian DB106 CAD Model

Description

The 584100-DB106 is a single-phase bridge rectifier diode designed for various applications.

  • Average Rectified Current: 1A
  • Forward Voltage: 1.1V @ 1A
  • Maximum Peak Reverse Voltage: 800V
  • Reverse Leakage Current: 5µA @ 800V
  • Mounting Type: Through-hole
  • Package: 4-EDIP
  • Operating Temperature Range: -55°C to 150°C
  • REACH Compliance: Compliant with the REACH regulations.
  • Manufacturer: SMC Diode Solutions
  • Product Lineup: Active product lineup.
