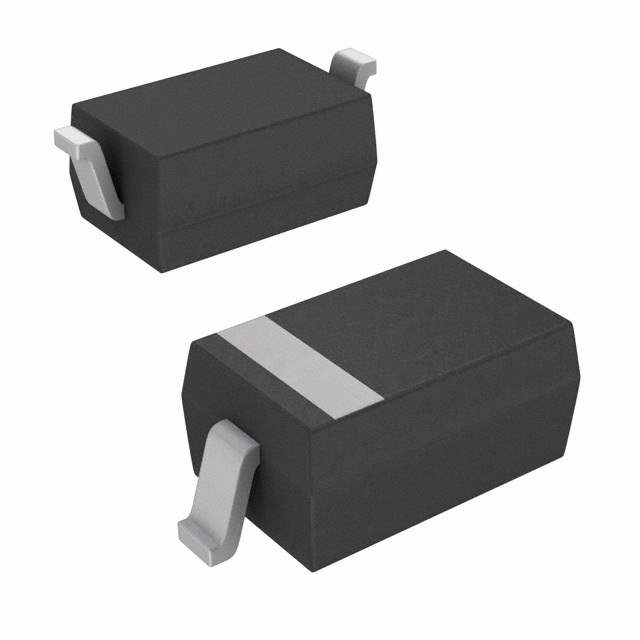

BAV20W Real Image
Same model may have multiple batches, images only for reference.

BAV20W

Part No BAV20W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 150V 200MA SOD123
Datasheet
BAV20W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 150 nA @ 150 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAV20
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 72955-BAV20W
Ultra Librarian 3D Model Ultra Librarian BAV20W CAD Model

Description

Overview

The BAV20W is a general-purpose switching diode that offers reliability and high-speed capabilities, suitable for various electronic operations.

Applications and Projects

  • Overvoltage protection
  • Signal processing
  • Power conversion circuits

Features and Benefits

  • Fast response time
  • Compact and efficient SMD package
  • Low forward voltage drop for energy efficiency
  • Suitable for high-density circuit boards

Its construction enhances thermal performance and reliability, making it a preferred choice for rigorous electronic applications.
