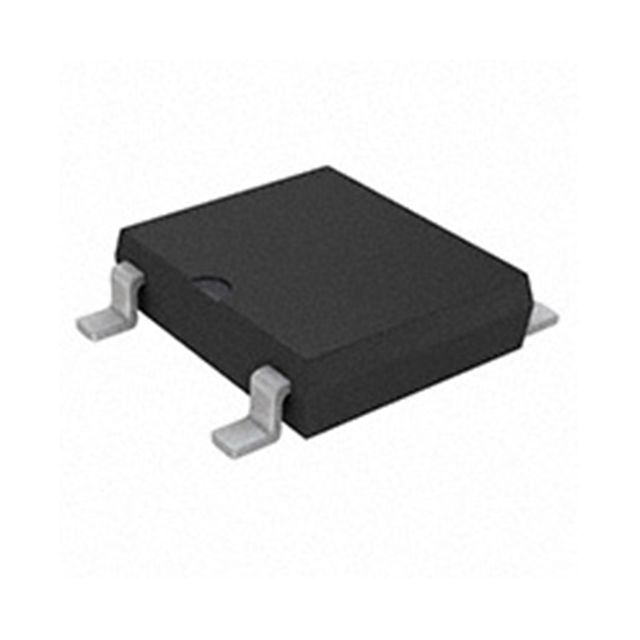

Same model may have multiple batches, images only for reference.
ABS28 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

ABS28

Part No ABS28
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 2A ABS
Datasheet
ABS28 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS28
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367802-ABS28
Ultra Librarian 3D Model Ultra Librarian ABS28 CAD Model

Description

The ABS28 is a bridge rectifier diode from SMC Diode Solutions.

  • Diode Type: Single Phase
  • Voltage - Peak Reverse (Max): 800V
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, Gull Wing
  • Current - Average Rectified (Io): 2A
  • Voltage - Forward (Vf) Max @ If: 1V @ 2A
  • Current - Reverse Leakage @ Vr: 5µA @ 800V
  • Applications: Power supplies and battery chargers
  • Operating Temperature: -55°C to 150°C
