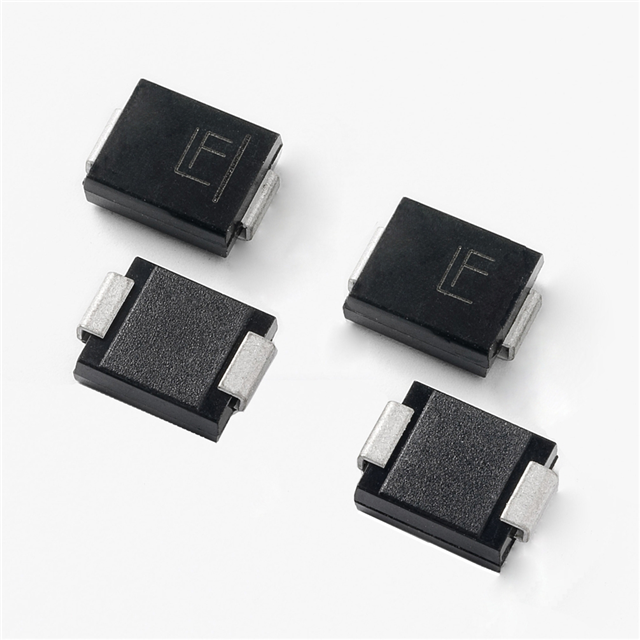

3.0SMCJ13A Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ13A

Part No 3.0SMCJ13A
Manufacturer SMC Diode Solutions
Catalog TVS - Diodes
Description TVS DIODE 13VWM 21.5VC SMC / 21.5V Clamp 139.4A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
Datasheet
3.0SMCJ13A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer SMC Diode Solutions
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13V
Voltage - Breakdown (Min) 14.4V
Voltage - Clamping (Max) @ Ipp 21.5V
Current - Peak Pulse (10/1000µs) 139.4A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 3.0SMCJ13ATRSMC-ND,3.0SMCJ13ATR,1655-3.0SMCJ13ATR,3.0SMCJ13ATRSMC
Standard Package 3,000
Win Source Part Number 1334734-3.0SMCJ13A
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ13A CAD Model

Description

The 3.0SMCJ13A is a TVS diode designed and manufactured by SMC Diode Solutions.

  • Channel: Unidirectional
  • Reverse Standoff Voltage: 13V
  • Breakdown Voltage: 14.4V
  • Clamping Voltage @ Ipp: 21.5V
  • Peak Pulse Power: 3000W
  • Mounting: Surface
  • Package: DO-214AB SMC
  • Operating Temperature Range: -55°C to 150°C
  • Compliance: RoHS3
  • Application: General-Purpose
