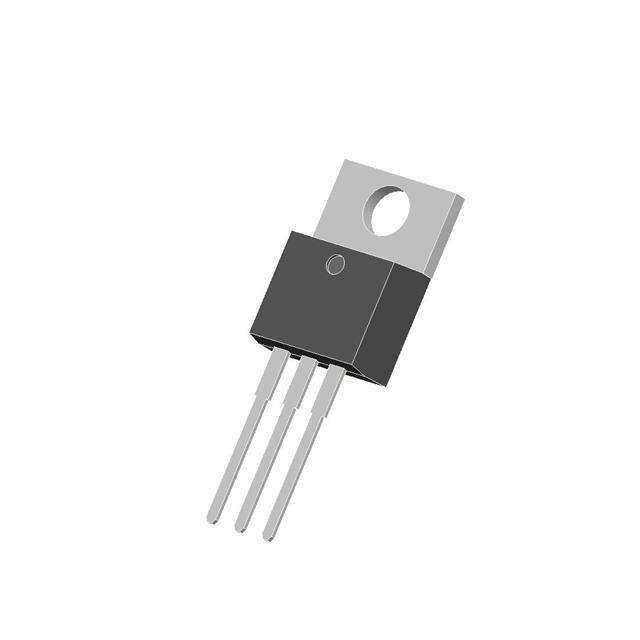

20CTQ035 Real Image
Same model may have multiple batches, images only for reference.

20CTQ035

Part No 20CTQ035
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description 20A, 35V, TO-220AB,SCHOTTKY RECT / Diode Array 1 Pair Common Cathode Schottky 35 V 20A Through Hole TO-220-3
Datasheet
20CTQ035 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer SMC Diode Solutions
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 800 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 35 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Through Hole
Case / Package TO-220-3
Supplier Device Package TO-220AB
Base Product Number 20CTQ035
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1655-20CTQ035
Standard Package 50
Win Source Part Number 1324246-20CTQ035
Ultra Librarian 3D Model Ultra Librarian 20CTQ035 CAD Model

Description

The 20CTQ035 is a diode rectifier from SMC Diode Solutions.

  • Case/Package: TO-220-3
  • Mounting Type: Through-Hole
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
  • Diode Type: Schottky
  • Voltage Rating: 35V
  • Average Rectified Current: 20A
