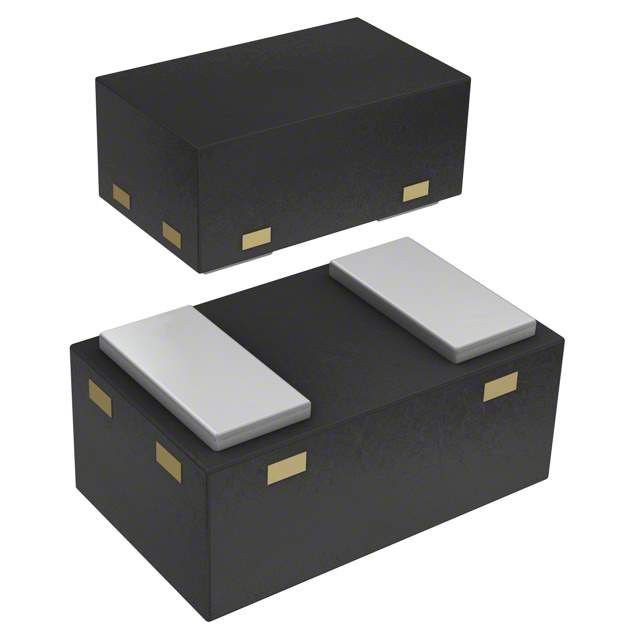

SMV1763-040LF

Part No SMV1763-040LF
Manufacturer Skyworks Solutions Inc.
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE VARACTOR
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Capacitance @ Vr, F 2.9pF @ 2.5V, 1MHz
Capacitance Ratio 2.7
Capacitance Ratio Condition C0.5/C2.5
Voltage - Peak Reverse (Max) 10V
Diode Type Single
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402
Win Source Part Number 1098677-SMV1763-040LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMV1763-040LF CAD Model

Description

The Skyworks Solutions Inc. SMV1763-040LF is a single diode with a capacitance of 2.9pF @ 2.5V and 1MHz.

  • Capacitance: 2.9pF @ 2.5V and 1MHz
  • Voltage Rating: 10V
  • Capacitance Ratio: 2.7
  • Packaging: Reel
  • Temperature Range: -55°C to 125°C
  • Case/Package Type: 0402
  • Popularity: A popular choice among electronic designers due to its high performance and reliability
